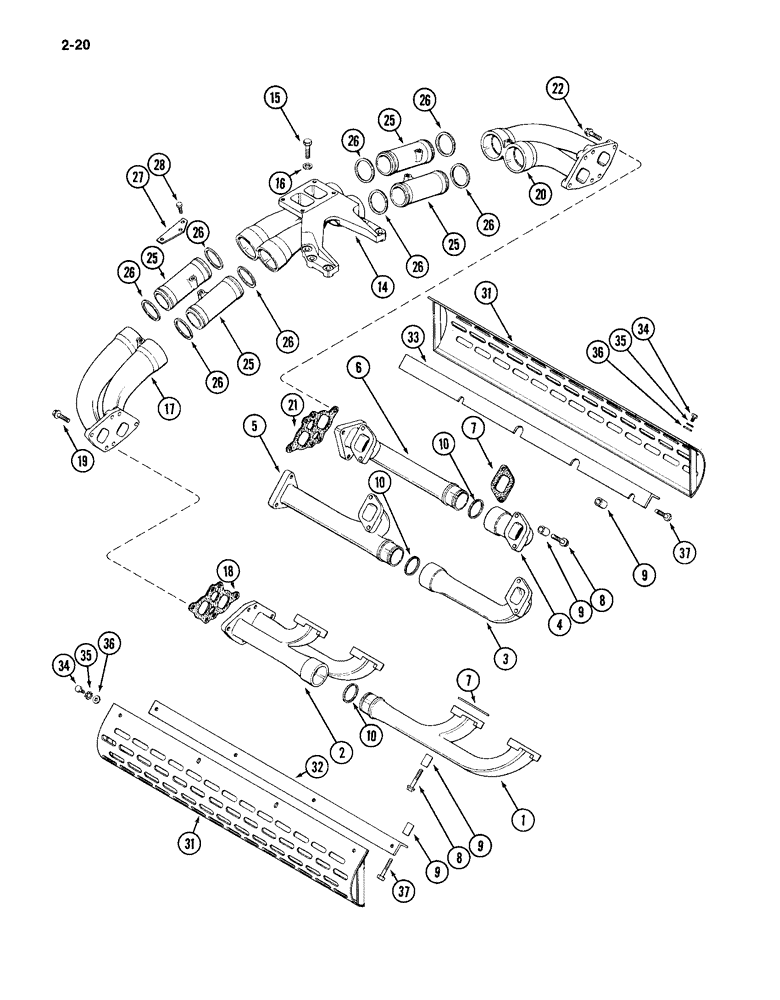

Запчасти Case IH 4994 (2-20) - EXHAUST MANIFOLD, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A48520

TUBE ASSY.

MANIFOLD - exhaust, No. 1 and 2 cylinder

1шт.

2

A48521

TUBE ASSY.

MANIFOLD - exhaust, No. 3 and 4 cylinder

1шт.

3

A48535

MANIFOLD

- exhaust, No. 5 cylinder

1шт.

4

A48536

MANIFOLD

- exhaust, No. 6 cylinder

1шт.

5

A48538

MANIFOLD

- exhaust, No. 7 cylinder

1шт.

6

A48537

TUBE ASSY.

MANIFOLD - exhaust, No. 8 cylinder

1шт.

7

A46760

MANIFOLD GASKET

- exhaust manifold

8шт.

8

A48540

FLANGE BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

BOLT - hex flange, manifold to cylinder head

16шт.

9

A48478

SLEEVE

SPACER - manifold

16шт.

10

A46440

RING

- compression (Set of 2)

3шт.

14

A46872

MANIFOLD

- exhaust intermediate

1шт.

15

A46824

SCREW,Hex, M10 x 1.5 x 40mm

BOLT - hex, manifold retaining

5шт.

16

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

5шт.

17

A48522

MANIFOLD

- exhaust intermediate, right

1шт.

18

A48529

MANIFOLD GASKET

- manifold

1шт.

19

A48541

FLANGE BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex flange

6шт.

20

A48539

MANIFOLD

- exhaust intermediate, left

1шт.

21

A48529

MANIFOLD GASKET

- manifold

1шт.

22

A48541

FLANGE BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex flange

6шт.

25

A46812

SLEEVE

SPACER - manifold sleeve

4шт.

26

A46389

SEAL

- compression (Set of 2)

8шт.

27

A46813

BRACKET

- spacer

2шт.

28

A46838

SCREW,Hex, M8 x 1.25 x 12mm

BOLT - hex, Serial Range: bracket-spacer

6шт.

31

A177518

GUARD ASSY.

GUARD - manifold (Replaces A169735)

2шт.

32

A167228

GUARD

BRACKET - manifold guard angel, right

1шт.

33

A167229

GUARD

BRACKET - manifold guard angle, left

1шт.

34

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

35

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

8шт.

36

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- hardened flat, 3/8 inch

8шт.

37

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.
