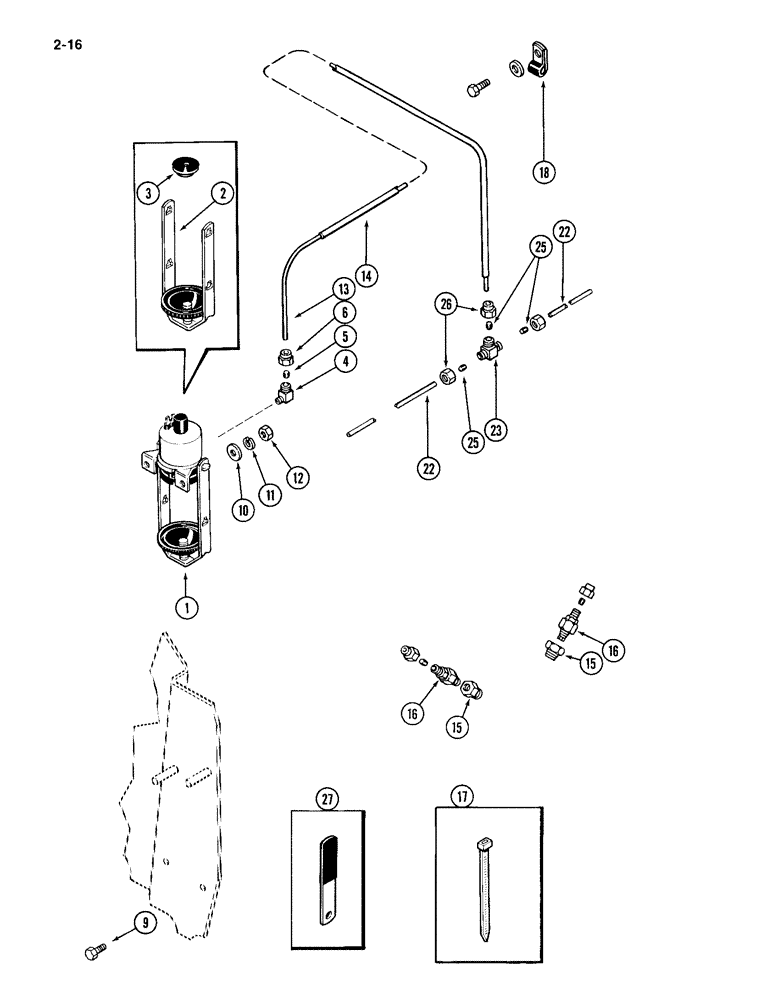

Запчасти Case IH 4994 (2-16) - ETHER STARTING AID, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2 - 6

1шт.

2

D77648

BAIL

HANGER ASSEMBLY - ether can

1шт.

3

R30786

GASKET

- ether can

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Solenoid, Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

for 1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

A176898

TUBE - solenoid to injector, inner (Order A138483 and, Serial Range: cut-length)

1шт.

A138483

TUBE

- nylon, 99 inch (2 517 mm)

1шт.

14

A138277

TUBE

- solenoid to injector, outer (210 inch long)

1шт.

15

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - injector nozzle to intake manifold

2шт.

16

A145070

NOZZLE INJECTION

INJECTOR - ether nozzle

2шт.

17

L76747

STRAP

- tube retaining

5шт.

18

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining

2шт.

22

A176088

TUBE - solenoid tee (Order L60539 and, Serial Range: cut-length)

2шт.

L60539

TUBE,0.125" OD x 168" L

- nylon, 168 inch (4 267 mm)

1шт.

22

A176090

TUBE - solenoid tee, (Order L108947 and, Serial Range: cut-length)

2шт.

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

ASSEMBLY - nylon, 210 inch (5 134 mm)

1шт.

23

222-5380

TEE,5/16"-24, Hi-seal

ASSEMBLY - solenoid, Includes: Ref. 25 and 26

1шт.

25

222-650

SLEEVE,1/8" Tube, Comp

3шт.

26

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

for 1/8" tube 5/16"-24, 45º Fl, Comp

3шт.

27

A22883

CLIP

- support

2шт.
