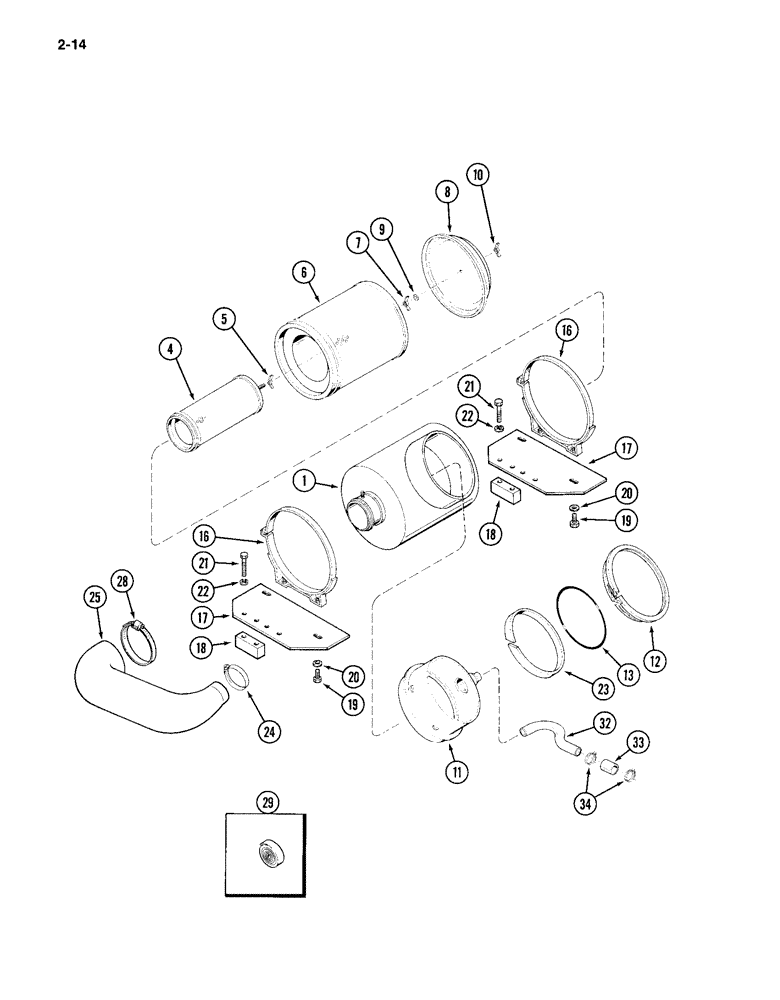

Запчасти Case IH 4994 (2-14) - AIR INDUCTION SYSTEM, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

NSS

NOT SOLD SEPARAT

AIR CLEANER AND PRECLEANER ASSEMBLY - engine (Reference No. A163863), Includes: Ref. 1 - 13

1шт.

A49465

AIR CLEANER

ASSEMBLY - engine, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A49465)

1шт.

4

A46947

ELEMENT

- safety

1шт.

5

L35499

NUT

- element retaining

1шт.

6

S224637

ELEMENT

- primary

1шт.

7

A47143

NUT

- element retaining

1шт.

8

A49466

COVER

- air cleaner

1шт.

9

S117040

CIRCLIP

CLIP - E type, retaining

1шт.

10

A47102

WING NUT

- wing, cover retaining

1шт.

11

A49464

CLEANER

PRECLEANER ASSEMBLY - engine

1шт.

12

A46946

CLAMP

- precleaner retaining

1шт.

13

A49467

O-RING,11.62" ID

- precleaner; 11.62 inch ID

1шт.

16

A163972

CLAMP

- air cleaner mounting

2шт.

17

A176443

BRACKET

- air cleaner mounting

2шт.

18

A176444

SPACER

- mounting bracket

2шт.

19

113-2212

BOLT,Locking, 3/8" - 16 x 7/8", Gr 8, Full Thd

- hex lock, 3/8 NC x 3/4 inch

4шт.

20

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

A166358

SEAL

- air cleaner intake

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - retaining, 4-1/2 to 3-9/16 inch

1шт.

25

A165861

TUBE

- air cleaner to turbocharger intake

1шт.

28

214-283

HOSE CLAMP,#116, 6.88" - 7.75", Type F Worm

CLAMP - retaining, 7-3/4 to 6-7/8 inch

1шт.

29

A177917

SEAL

TAPE - sealing

1шт.

Ref #29 - Obtain Locally

1шт.

32

A176445

TUBE

- aspirator

1шт.

33

A180610

HOSE,50.80 mm ID x 75.00 mm, SAE 20R1

- aspirator tube 50.80 mm ID x 75.00 mm, SAE 20R1

2шт.

34

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

retaining, aspirator tube #36, 1.81/2.75 Type F Worm

4шт.
