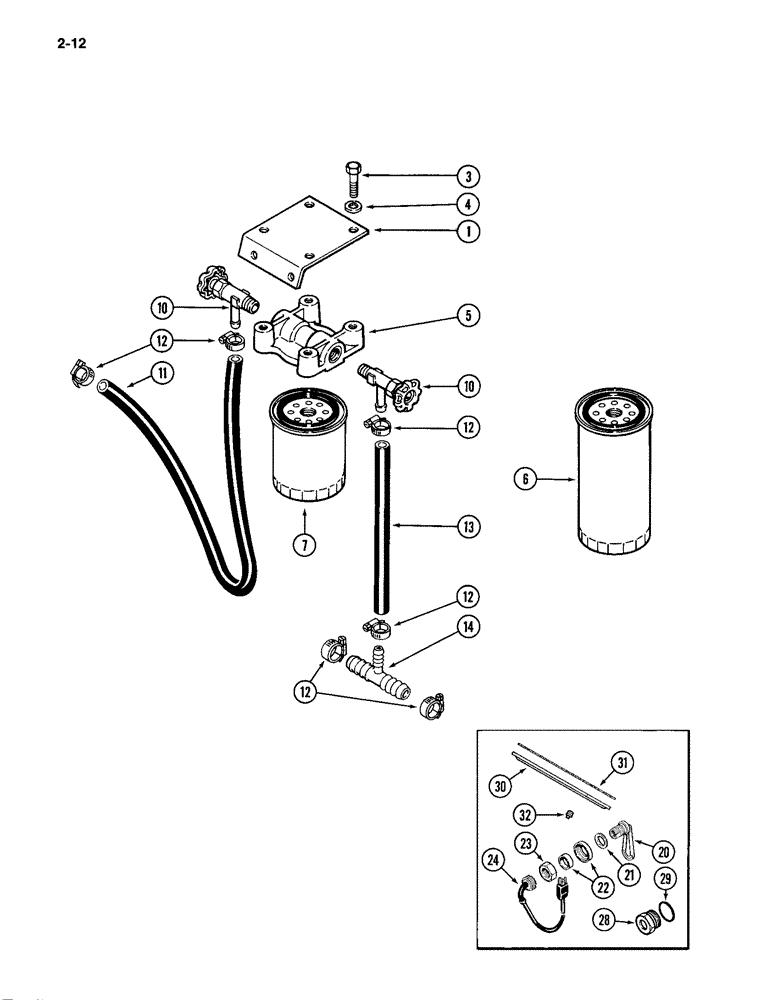

Запчасти Case IH 4994 (2-12) - WATER FILTER, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A67541
KIT
- water filter, Includes: Ref. 1 - 14
1шт.
1
A167114
BRACKET
- water filter
1шт.
3
113-616
BOLT
- hex, 3/8 NC x 1-1/2 inch
4шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
5
A152821
HEAD
- filter
1шт.
6
A152819
FILTER
ELEMENT - water, charged, 7-1/2 inch long (190 mm)
1шт.
7
A151931
FILTER
ELEMENT - water, service, 4-13/64 inch long (107 mm)
1шт.
10
A154051
COCK, DRAIN
VALVE ASSEMBLY - water shutoff
2шт.
11
A154770
HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20
9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Cylinder Block (Order A154065, 36 inch long)
1шт.
12
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose retaining
6шт.
13
A161557
HOSE,9.60 mm ID x 558.80 mm, SAE 20R3
- Heater (Order A154065, 36 inch long) 9.60 mm ID x 558.80 mm, SAE 20R3
2шт.
14
A154014
CONNECTOR, ELEC
TEE - heater hose
1шт.
A67604
HEATER
KIT - cylinder block, Includes: Ref. 20 - 32
1шт.
A182069
ELEMENT
HEATER ASSEMBLY - cylinder block (Replaces A155436), Includes: Ref. 20 - 23
2шт.
approx. 1-7/8" dia. A182059 has a 1" thread.
1шт.
Item # A182069 subs to 3 diff. part #'s depending on the use. A182017 & A182020 fit in a frost plug hole
1шт.
20
NSS
NOT SOLD SEPARAT
ELEMENT - heater (Order A155436), cylinder block
1шт.
21
A45114
GASKET
- element, cylinder block heater
1шт.
22
NSS
NOT SOLD SEPARAT
SPACER AND PLUG - element (Discard and use Ref 28 and 29), cylinder block heater
1шт.
23
A45115
NUT
- element, cylinder block heater
1шт.
24
A44813
CABLE EXTENSION
CORD - heater, 12 inch (305 mm), cylinder block
1шт.
28
A150514
FITTING
- element, cylinder block heater
2шт.
29
A45719
O-RING,39.3 mm ID x 1.6 mm
- fitting, cylinder block heater
2шт.
30
A70820
COVER
- side, block, cylinder heater
2шт.
31
A46788
GASKET
- cover, side, cylinder block heater
2шт.
32
221-1656
PLUG,Hex Hd, 1"-11 1/2
- hex head pipe, 1 inch PT, cylinder block heater
2шт.
Выбрано товаров: 26
