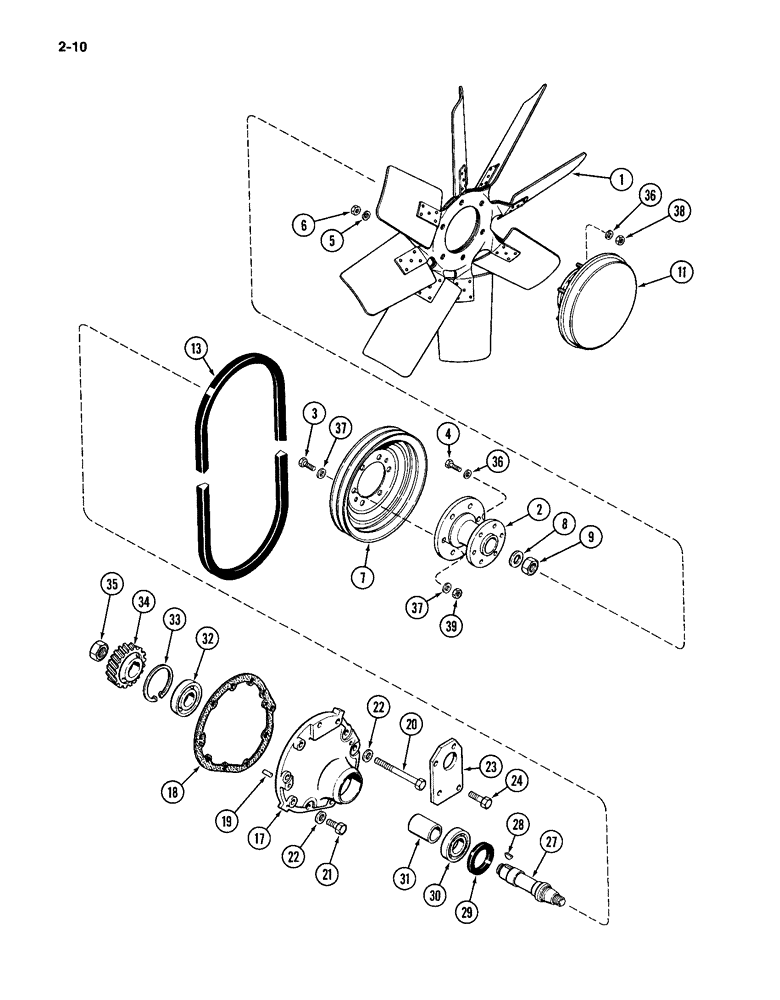

Запчасти Case IH 4994 (2-10) - FAN, BELT AND PULLEY, 866 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A173218

FAN

- engine

1шт.

2

A70940

SPACER

- fan

1шт.

3

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, M12 x 25

6шт.

4

113-212

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

6

9635082

NUT,5/16" - 18, Gr 5

6шт.

7

A45918

PULLEY

- belt, one groove

1шт.

Ref #7 - This is a two groove pulley, Not one groove

1шт.

8

A46653

WASHER

- pulley

1шт.

9

A46040

NUT

- pulley retaining

1шт.

11

A173198

FAN

DRIVE - fan, modulating

1шт.

13

A138760

V-BELT,0.50" W

Alternator 0.50" W

1шт.

Ref #13 - (50" ) Order Qty. 2

1шт.

17

A48554

HOUSING, BEARING

HOUSING - bearing shield

1шт.

18

A46797

GASKET

- bearing housing

1шт.

19

A46654

PIN

- guide

2шт.

20

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, M10 x 130 mm

1шт.

21

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

22

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

7шт.

23

A48650

EYE

- lifting

1шт.

24

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, M10 x 40 mm

2шт.

27

A46871

KIT

SHAFT - fan

1шт.

28

A46640

KEY

- shaft, Woodruff

1шт.

29

A48573

SEALING RING

SEAL - ring oil

1шт.

30

A45940

BALL BEARING

BEARING - shaft, front

1шт.

31

A46805

SLEEVE

SPACER - shaft sleeve

1шт.

32

A46715

BALL BEARING

BEARING - shaft, rear

1шт.

33

A46658

OIL SEAL

RING - retaining

1шт.

34

A48491

GEAR

- fan shaft

1шт.

35

A46711

NUT

- hex retaining

1шт.

36

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

12шт.

37

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

12шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

39

825-1112

NUT,M12, Cl 8

- hex, M12

6шт.
