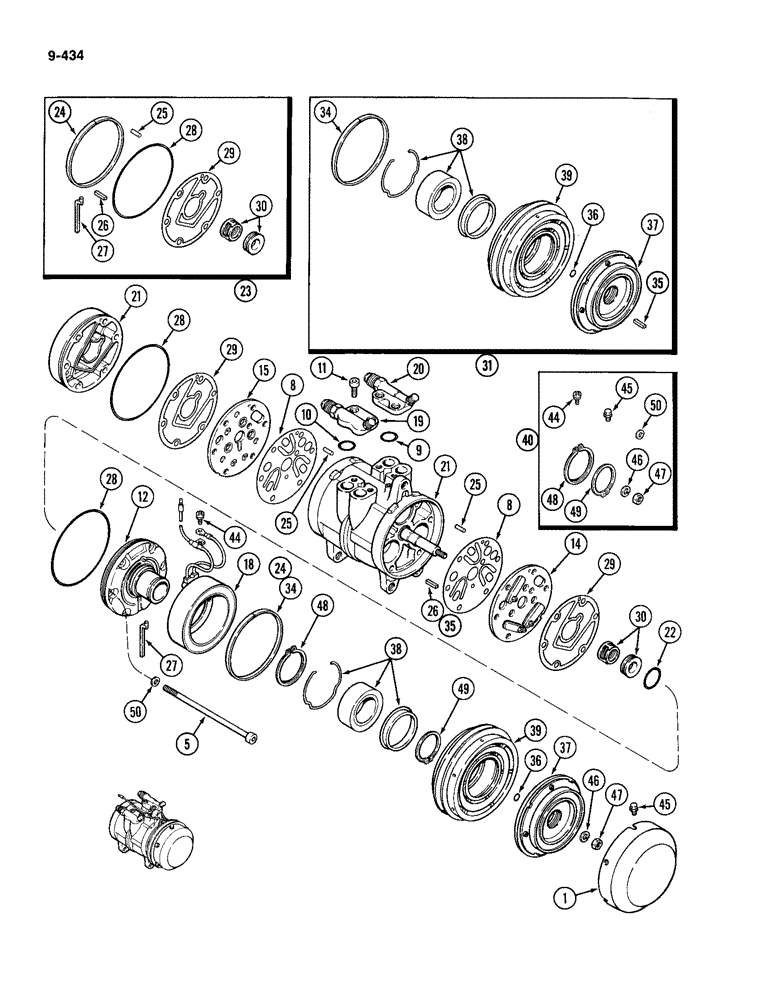

Запчасти Case IH 4994 (9-434) - AIR CONDITIONING, AIR COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A165850
COMPRESSOR
ASSEMBLY - air conditioning, Includes: Ref. 1 - 50
1шт.
1
A46675
COVER
- dust
1шт.
5
A46684
BOLT
- hex, M8 x 162 mm
6шт.
8
A46719
VALVE POPPET
REED - inlet
2шт.
9
A48622
O-RING,19.8 mm ID
- discharge manifold
2шт.
10
A48624
O-RING,19.8 mm ID
- suction manifold
2шт.
11
A46847
BOLT - hex socket head, M8 x 20 mm
4шт.
12
A48648
HEAD
ASSEMBLY - front
1шт.
14
A48687
PLATE
- valve, front
1шт.
15
A48688
PLATE
- valve, rear
1шт.
18
A48689
COIL
- clutch field
1шт.
19
A48690
MANIFOLD
ASSEMBLY - suction
1шт.
20
A48691
MANIFOLD
ASSEMBLY - discharge
1шт.
21
A48692
COMPRESSOR
ASSEMBLY - air conditioner
1шт.
22
A48693
O-RING
- seal seat
1шт.
23
A46642
SEAL
KIT - shaft, Includes: Ref. 24 - 30
1шт.
24
NSS
NOT SOLD SEPARAT
FELT - dust
1шт.
25
NSS
NOT SOLD SEPARAT
PIN - straight
2шт.
26
NSS
NOT SOLD SEPARAT
KEY - lock
1шт.
27
NSS
NOT SOLD SEPARAT
GUIDE - oil drain
1шт.
28
NSS
NOT SOLD SEPARAT
O-RING - compressor
2шт.
29
NSS
NOT SOLD SEPARAT
GASKET - compressor
2шт.
30
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
A46672
PULLEY
KIT - clutch, Includes: Ref. 31 - 39
1шт.
31
A46669
KIT
HUB KIT - clutch, Includes: Ref. 34 - 37
1шт.
34
NSS
NOT SOLD SEPARAT
FELT - dust
1шт.
35
NSS
NOT SOLD SEPARAT
KEY - lock
1шт.
36
A46679
SHIM
WASHER - plate (0.8 mm)
1шт.
36
A46680
SHIM
WASHER - plate (0.2 mm)
1шт.
36
A46681
SHIM
WASHER - plate (0.1 mm)
1шт.
37
NSS
NOT SOLD SEPARAT
HUB ASSEMBLY - magnetic
1шт.
38
A46682
BALL BEARING,40 mm ID x 62 mm OD x 24 mm
BEARING ASSEMBLY - ball
1шт.
39
NSS
NOT SOLD SEPARAT
PULLEY - compressor
1шт.
40
A46673
KIT
HARDWARE KIT - compressor, Includes: Ref. 44 - 50
1шт.
44
NSS
NOT SOLD SEPARAT
SCREW - slotted (with washer)
1шт.
45
A46677
BOLT,Hex Washer, M5 x 8mm
BOLT ASSEMBLY - hex head
6шт.
46
NSS
NOT SOLD SEPARAT
WASHER - lock, 8.2 mm
1шт.
47
NSS
NOT SOLD SEPARAT
NUT - hex, M8
1шт.
48
NSS
NOT SOLD SEPARAT
RING - snap, 45.8 mm ID
1шт.
49
NSS
NOT SOLD SEPARAT
RING - snap, 37 mm ID
1шт.
50
NSS
NOT SOLD SEPARAT
RING - packing
6шт.
Выбрано товаров: 41
