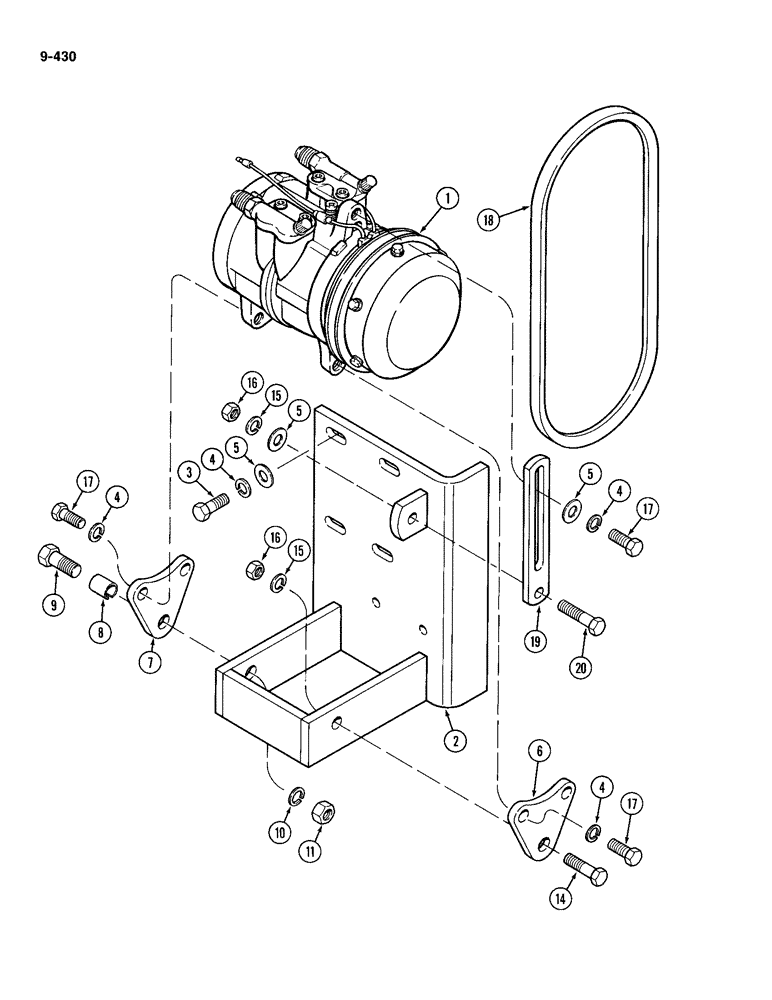

Запчасти Case IH 4994 (9-430) - AIR CONDITIONING, AIR COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A165850

COMPRESSOR

ASSEMBLY - air conditioning (See Figure 9-434)

1шт.

2

A169382

BRACKET

- compressor mounting

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, M10

9шт.

5

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

9шт.

6

A167933

PLATE

- front pivot

1шт.

7

A167934

PLATE

- rear pivot

1шт.

8

A162926

SPACER

- mounting, rear pivot

1шт.

9

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 1.75 x 30 mm

1шт.

10

892-1112

LOCK WASHER,M12

WASHER - lock, M12

1шт.

11

825-1112

NUT,M12, Cl 8

- hex, M12

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

18

A75577

V-BELT,0.50" W

Compressor 0.50" W

1шт.

19

A167938

STRAP

- belt adjsuting

1шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.
