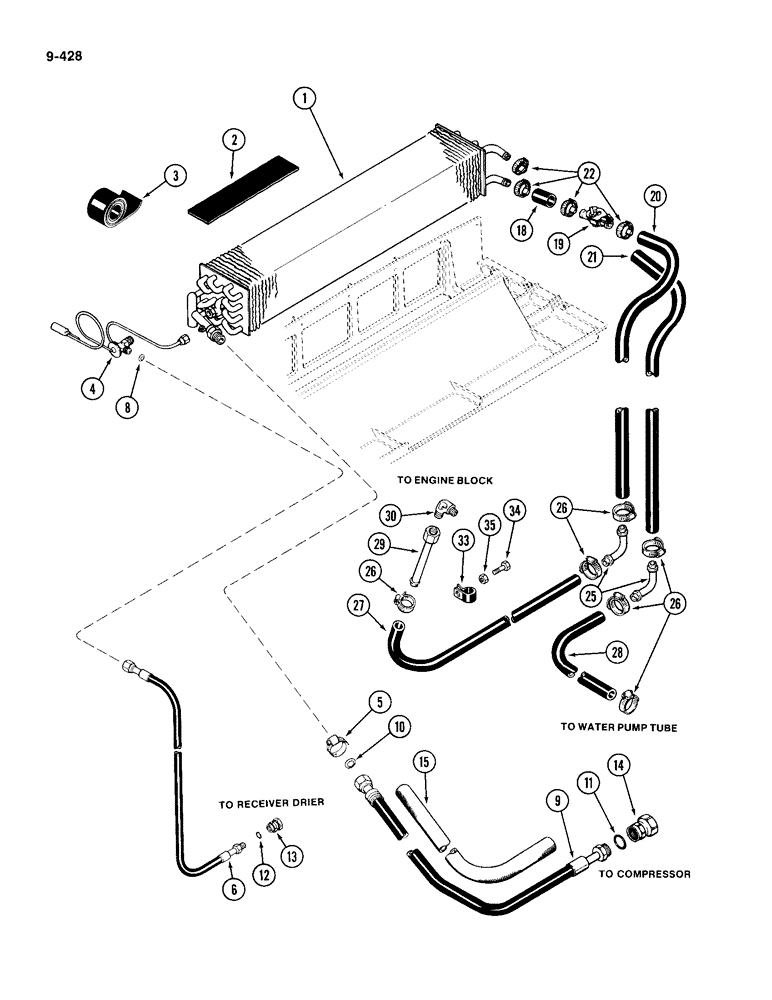

Запчасти Case IH 4994 (9-428) - CAB, HEATER AND AIR CONDITIONING CORE AND HOSES, CAB SERIAL NUMBER 12112201 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

F66203

HEATER ASSY.

CORE - air conditioning and heate

1шт.

2

345-37

TAPE

- cork, core insulator, 2-1/2 x 12 x 1/8 inch (64 x 305 x 3 mm) (Order A42902)

3шт.

3

345-45

TAPE

INSULATION - press on, 2 inch (50 mm) wide 20 inch (508 mm) long

1шт.

4

F64389

VALVE

- expansion

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - insulation, 1-3/16 to 1-3/4 inch (30 to 44 mm)

1шт.

6

F64535

HOSE

- high side, pressure (to coupling)

1шт.

8

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

9

F64534

HOSE

- low side, suction (to compressor)

1шт.

10

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4 inch tube x 45 degree flare

1шт.

11

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling

1шт.

12

A61195

O-RING,0.364" ID x 0.5" OD

- coupling

1шт.

13

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - high side, pressure

1шт.

14

A42664

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - low side

1шт.

15

F66207

SLEEVE CYLINDER

SLEEVE - hose,nylon

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - core to valve (Order A42610 and cut to length) (Reference No. F64008)

1шт.

19

F66209

VALVE

- control, heat

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - Valve outlet (Order A42610 and cut to length) (Reference No. F64009)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - core inlet, black with red (Order A42610 and cut to length (Reference No. F64010)

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch

4шт.

A42610

LARGE HOSE

HOSE - 5/8 ID x 1 inch OD x 50 foot roll (16 x 25 mm x 1 524 m) (cut to desired length)

1шт.

25

A60823

ELBOW

- 90 degree, hose

2шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch

6шт.

27

NSS

NOT SOLD SEPARAT

HOSE - heater inlet, 81 inch (2 057 mm) (Order A42610 and, Serial Range: cut-length)

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE - heater return, 123 inch (3 124 mm) (Order A42610 and cut length)

1шт.

29

A165516

TUBE

- heater inlet hose

1шт.

30

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 5/8 tube 7/8-14 thread x 1/2 inch PT

1шт.

33

515-22254

CLAMP,1", Insul, 5/16" Bolt

- hose

3шт.

34

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

2шт.
