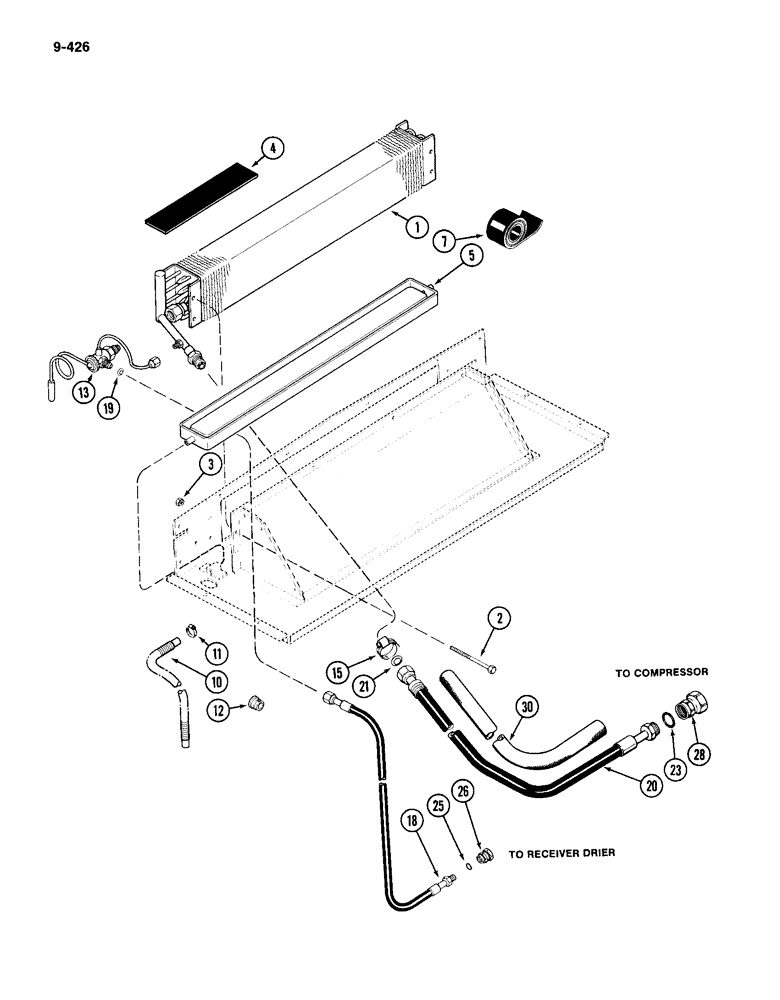

Запчасти Case IH 4994 (9-426) - CAB, AIR CONDITIONING EVAPORATOR, PRIOR TO CAB SERIAL NUMBER 12112201 (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

4

345-37

TAPE

- cork, core insulator, 2-1/2 x 12 x 1/8 inch (64 x 305 x 3 mm) (Order A42902)

3шт.

5

F64487

PAN

- condensation

3шт.

7

A42902

SEALING STRIP

INSULATION - press on, 2-1/2 inch (64 mm) wide 30 foot (9 m) long

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, corrugated (Order A64508) (Reference No. F64505)

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- corrugated 0.43" ID x 100' Bulk

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

7/16 to 9/16 inch (11 to 14 mm)

2шт.

12

F64504

BUSHING

- hose, cab post

2шт.

13

F64389

VALVE

- expansion

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - insulation, 1-3/16 to 1-3/4 inch (30 to 44 mm)

1шт.

18

F64535

HOSE

- high side, pressure (to coupling)

1шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

20

F64534

HOSE

- low side, suction (to compressor)

1шт.

21

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4 inch tube x 45 degree flare

1шт.

23

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling

1шт.

25

A61195

O-RING,0.364" ID x 0.5" OD

- coupling

1шт.

26

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - high side, pressure

1шт.

28

A42664

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - low side

1шт.

30

A66207

HOSE

SLEEVE - hose, nylon

1шт.
