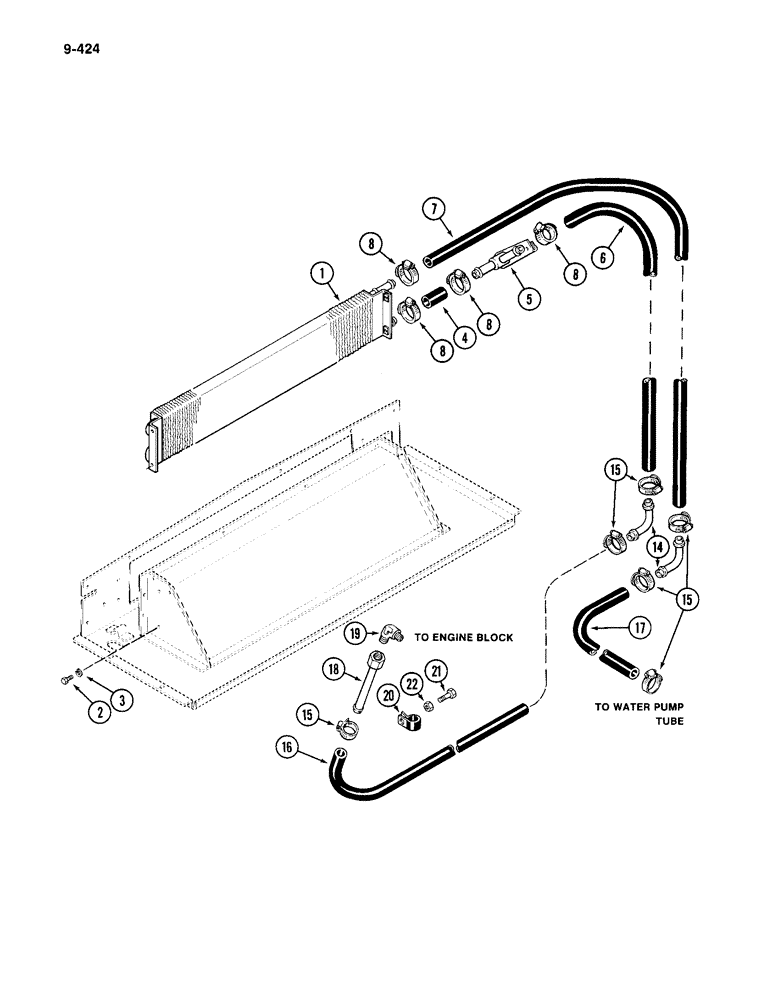

Запчасти Case IH 4994 (9-424) - CAB, HEATER, PRIOR TO CAB SERIAL NUMBER 12112201 (09) - CHASSIS/ATTACHMENTS

1

F63680

CORE

- heater

1шт.

2

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 1/4 NC x 1/2 inch

4шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

WASHER - lock, 1/4 inch

4шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve (Order A42610)

1шт.

5

F63865

VALVE

- control, heat

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, black with red (Order A 42610)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch

4шт.

A42610

LARGE HOSE

HOSE - 5/8 ID x 1 inch OD x 50 foot roll (16 x 25 mm x 1 524m) (cut to desired length)

1шт.

14

A60823

ELBOW

- 90 degree, hose

2шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch

6шт.

16

NSS

NOT SOLD SEPARAT

HOSE - heater inlet, 81 inch (2 057 mm) (Order A42619)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - heater return, 123 inch (3 124 mm) (Order A42610)

1шт.

18

A165516

TUBE

ASSEMBLY - heater inlet hose

1шт.

19

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 5/8 tube 7/8-14 thread x 1/2 inch PT

1шт.

20

R14668

CLAMP

- hose

3шт.

21

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

22

12-102

NUT - hex, 5/16 inch NC

2шт.
