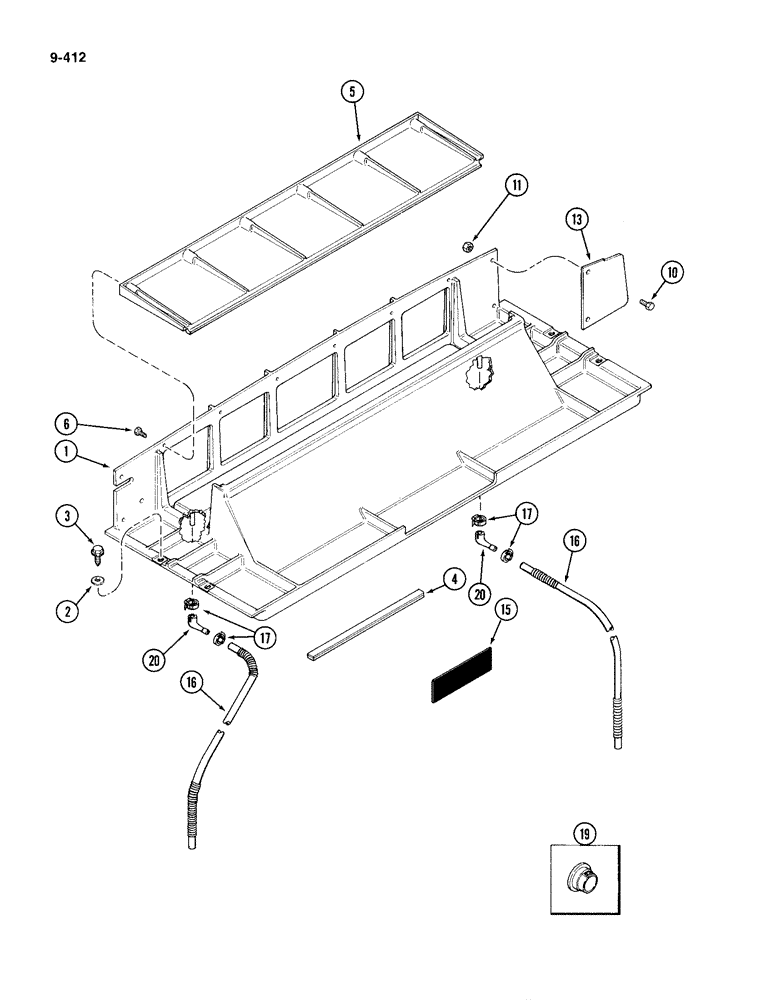

Запчасти Case IH 4994 (9-412) - CAB, PLENUM, CAB SERIAL NUMBER 12112201 AND AFTER / AIR CONDITIONING EVAPORATION DRAIN (09) - CHASSIS/ATTACHMENTS

1

F64861

PAN

CHANNEL - passage, air

1шт.

2

F44834

BUSHING

- nylon

4шт.

3

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - washer head self-tapping, No. 10-16 x 1/2 inch

4шт.

4

F64736

SEAL - tube, floor 111-1/2 inch (2 832 mm) (Order F64119)

2шт.

F64119

SEALING STRIP

SEAL - 100 foot roll (30 m) (Cut to desired length)

1шт.

5

F64884

COVER

- top, air duct

1шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, No. 8-16 x 3/4 inch

6шт.

10

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex, 1/4 NC x 3/4 inch

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

13

F63614

PLATE ASSY.

PLATE - end, air tube

1шт.

15

345-45

TAPE

- duct, air conditioning evaporation drain, Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - drain, corrugated, 90 inch (2 286 mm) long (Order F64508) (Reference No. F64505), air conditioning evaporation

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- corrugated air conditioning evaporation drain 0.43" ID x 100' Bulk

1шт.

17

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

7/16 to 9/16 inch, air conditioning evaporation drain

4шт.

19

F64504

BUSHING

- hose to post, air conditioning evaporation drain

2шт.

20

F66183

ELBOW

- 90 degree, celcon, air conditioning evaporation drain

2шт.
