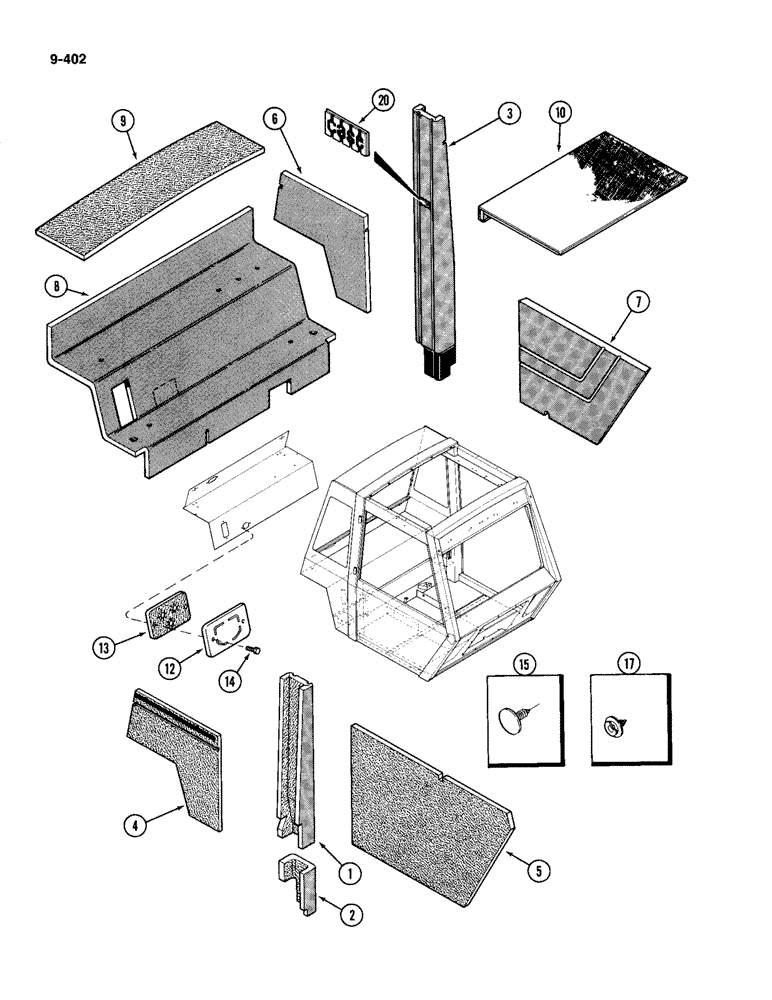

Запчасти Case IH 4994 (9-402) - CAB, ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

F66072

COVER

- upper, right-hand roll bar (Includes Ref 20)

1шт.

2

F66074

COVER

- lower, right-hand roll bar

1шт.

3

F66073

COVER

- left-hand roll bar (Includes Ref 20)

1шт.

4

F66070

COVER

- rear, right-hand panel

1шт.

5

F66076

COVER

- front, right-hand lower panel

1шт.

6

F66071

COVER

- rear, left-hand panel

1шт.

7

F64813

COVER ASSY

COVER - door panel

1шт.

8

F66069

COVER

- rear

1шт.

9

F63352

FOAM

COVER - hear barrier, upper rear

1шт.

10

F66137

PAD

- headliner

1шт.

12

F64989

COVER ASSY

COVER - air oil port

1шт.

13

F66075

SEAL

- port

1шт.

14

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

15

A166346

FASTENER

- cover

2шт.

17

F66031

CLIP

- cover, 1/4 inch tree type

9шт.

20

A177741

SYMBOLS

MEDALLION - logo

2шт.
