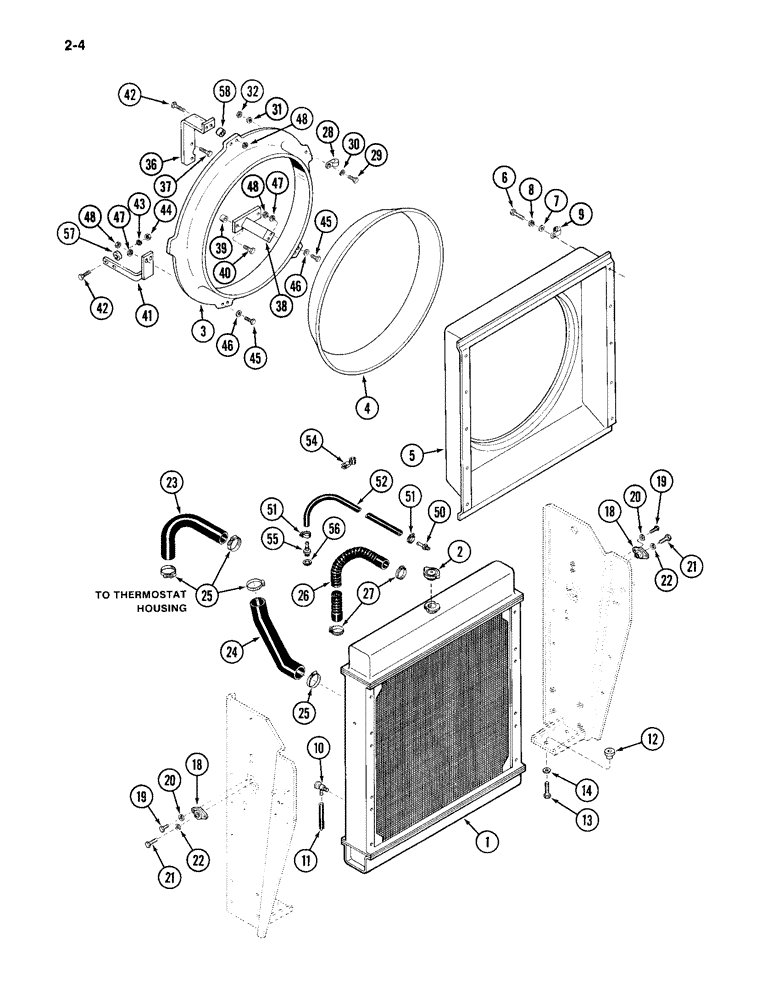

Запчасти Case IH 4994 (2-04) - RADIATOR SHROUD AND HOSES (02) - ENGINE

1

A165742

RADIATOR

ASSEMBLY - engine coolant

1шт.

2

A166776

CAP

- radiator, 10 PSI (69 kPa)

1шт.

3

A164432

SHROUD

- fan

1шт.

4

A180731

SEALING RING

RING - sealing

1шт.

5

A180335

SHROUD

FRAME - shroud

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

10шт.

7

195-2251

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 9/64 inch (7 x 25 x 4 mm)

10шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

9

49839

CLAMP

CLIP - retaining

2шт.

10

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

11

W15865

LINE,0.25" ID x 31" L

TUBE - drain

1шт.

12

L46821

SHOCK ABSORBER

BUSHING - mounting

2шт.

13

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

A138589

MOUNTING PARTS

MOUNT - radiator upper

2шт.

19

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex, No. 10-24 x 1/2 inch

4шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

21

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

A165710

RADIATOR HOSE,57.20 mm ID x 348.00 mm, SAE 20R4 CLASS C PER SAE J20

57.20 mm ID x 348.00 mm, SAE 20R4, Upper

1шт.

24

A165709

RADIATOR HOSE,63.50 mm ID x 255.00 mm, SAE 20R4 CLASS C OR D1 PER SAE J20

63.50 mm ID x 255.00 mm, SAE 20R4, Lower

1шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

retaining #36, 1.81/2.75 Type F Worm

4шт.

26

A176903

HOSE,31.80 mm ID x 826.00 mm, SAE 20R2

- pressure balance 31.80 mm ID x 826.00 mm, SAE 20R2

1шт.

27

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

retaining #28, 1.31/2.25 Type F Worm

2шт.

28

49773

CLAMP

- balance hose retaining

1шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

32

9635082

NUT,5/16" - 18, Gr 5

1шт.

36

A180336

BRACKET

- shroud upper

1шт.

37

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

37

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

38

A180337

BRACKET

- shroud, left

1шт.

39

T31088

SPACER,3/8" Pipe x 1/2"

BUSHING - bracket

2шт.

40

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

41

A180339

BRACKET

- shroud, lower right

1шт.

42

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

45

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

46

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

8шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

48

9635082

NUT,5/16" - 18, Gr 5

6шт.

50

217-206

FITTING

CONNECTOR - hose, coolant hose

1шт.

51

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch (14 to 27 mm)

2шт.

52

A177308

HOSE

- coolant

1шт.

54

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

CLIP - hose

1шт.

55

A48655

NIPPLE, LUBE

CONNECTOR - straight, hose

1шт.

56

A46323

WASHER

- connector

1шт.

57

A140435

BUSHING

SPACER - bracket

2шт.

58

A31238

BUSHING

SPACER - bracket

2шт.
