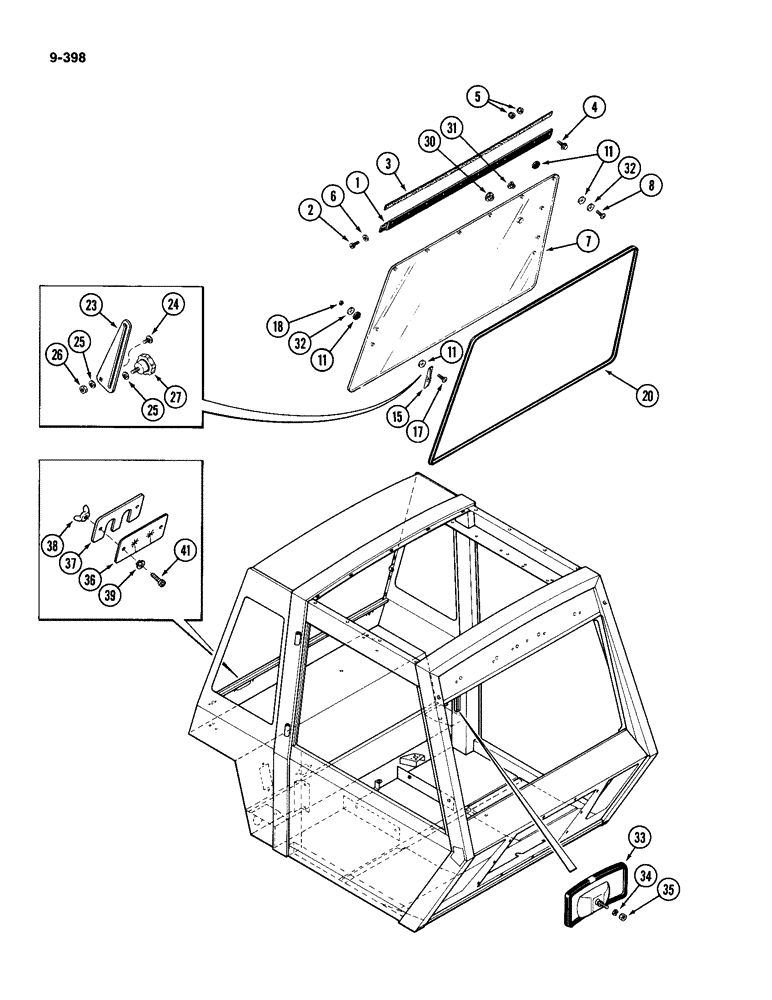

Запчасти Case IH 4994 (9-398) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F66132

HINGE

ASSEMBLY - cab (Replaces F64640)

1шт.

2

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - pan head slotted, No. 10 x 1/2 inch special

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - hinge (Order F64119) (Reference No. F64679)

1шт.

F64119

SEALING STRIP

SEAL - strip, 100 foot (33 m) roll (cut to required length)

1шт.

4

163-42

SCREW,Hex Wshr Hd, #10 - 24 x 1/2", Gr 5

- washer hex head, No. 10-24 x 3/4 inch

10шт.

5

F45165

SPECIAL NUT,#10-24

NUT - hex, No. 10 special

20шт.

6

195-513

WASHER,#10

- flat, 7/32 x 7/16 x 1/16 inch (6 x 11 x 2 mm)

2шт.

7

REF

INSTRUCTION

GLASS - window (See Figure 9-400)

1шт.

8

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- oval head, No. 10-24 x 3/4 inch

6шт.

11

F45215

LINK

WASHER - shoulder

20шт.

15

F66004

CLEVIS PIN

BRACKET - regulator arm (Replaces F64138)

2шт.

17

182-594

SCREW,Cross Pan Hd, #10-24 x 1"

- phillips head No. 10-24 x 1 inch

4шт.

18

F45165

SPECIAL NUT,#10-24

NUT - hex, No. 10-24 special

10шт.

20

F64677

SEAL

SEAL - window (Order F64499 and, Serial Range: cut-length)

1шт.

23

F64779

REGULATOR

ARM - regulator, window opening

2шт.

24

111-267

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

25

195-130

WASHER - flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

4шт.

26

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

27

F64253

KNOB

- regulator

2шт.

30

F66090

PLUG

- window

1шт.

31

F66089

PLUG

- window

1шт.

32

195-2208

WASHER,.266" x 13/16" x .079"

- flat, 17/64 x 13/16 x 3/32 inch (8 x 21 x 2 mm)

10шт.

33

A177462

MIRROR

ASSEMBLY - rear view, inside, Includes: Ref. 34 and 35

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

1шт.

A167146

PACKAGE

ACCESS ATTACHMENT - lower rear (Machinery Item), Includes: Ref. 36 - 41

1шт.

36

A165354

SEAL

- plate, lower rear access

2шт.

37

A165352

PLATE

- seal, lower rear access

1шт.

38

129-500

WING NUT,#10-32

NUT - wing, No. 10-24, lower rear access

2шт.

39

A165523

FASTENER

- flat Tinnerman, No. 10-24, lower rear access

2шт.

41

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- Phillips oval head, No. 10-24 x 1 inch, lower rear access

2шт.
