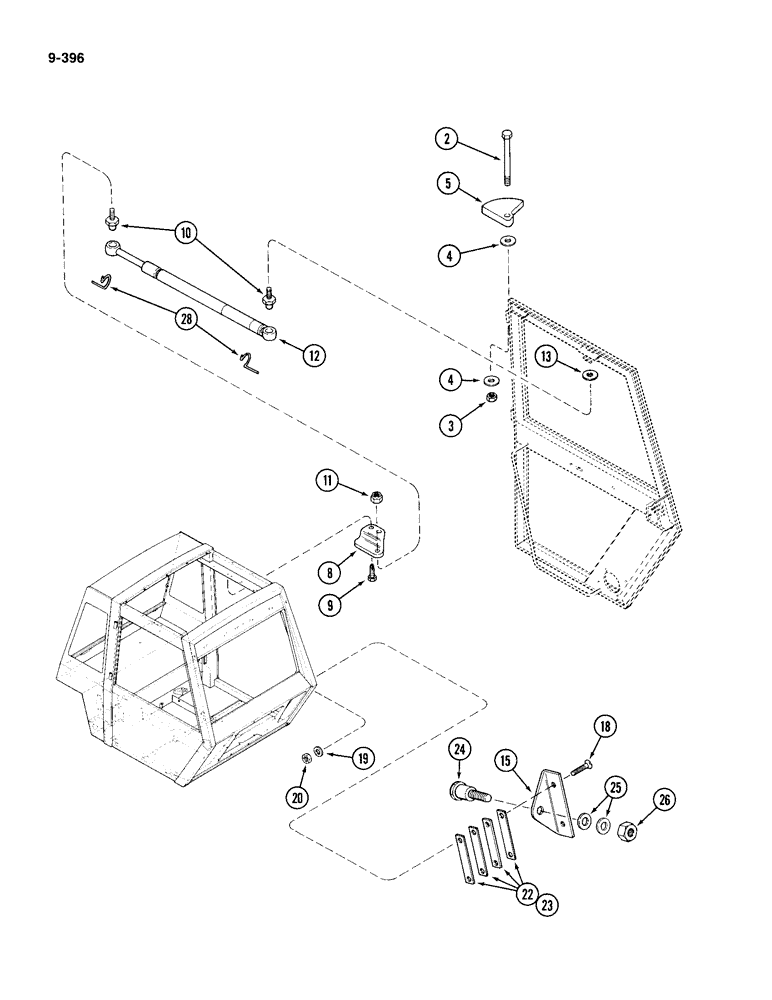

Запчасти Case IH 4994 (9-396) - CAB, DOOR ATTCHING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR ASSEMBLY - cab (See Figure 9-394)

1шт.

2

113-2238

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

2шт.

3

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch NC

2шт.

4

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust

4шт.

5

F64814

STOP

- door

2шт.

8

F64746

BRACKET

- door cylinder

1шт.

9

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - indented hex head, 1/4 x 3/4 inch self tapping

2шт.

10

F44882

BALL

STUD - ball

2шт.

11

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

1шт.

12

F64762

GAS STRUT

CYLINDER - gas spring, door

1шт.

13

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

1шт.

15

F64301

BRACKET

- striker pin

1шт.

18

171-253

SCREW,Cross Flat Hd, 1/4" - 20 x 1", Gr 5

- flat head, 1/4 NC x 1 inch

2шт.

19

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

2шт.

20

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

2шт.

22

F63785

SHIM

- stricker bracket, 3/64 inch (1 mm)

1шт.

23

F63786

SHIM

- stricker bracket, 5/64 inch (2 mm)

1шт.

24

F66210

STRIKER PLATE

STRIKER - door latch (Replaces F64345)

1шт.

25

195-2018

WASHER,.469" x 3/4" x .065"

- flat, 15/32 x 3/4 x 5/64 (12 x 19 x 2 mm)

2шт.

26

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

28

F44883

CLIP,DIN 71805 - S10

- retaining

2шт.
