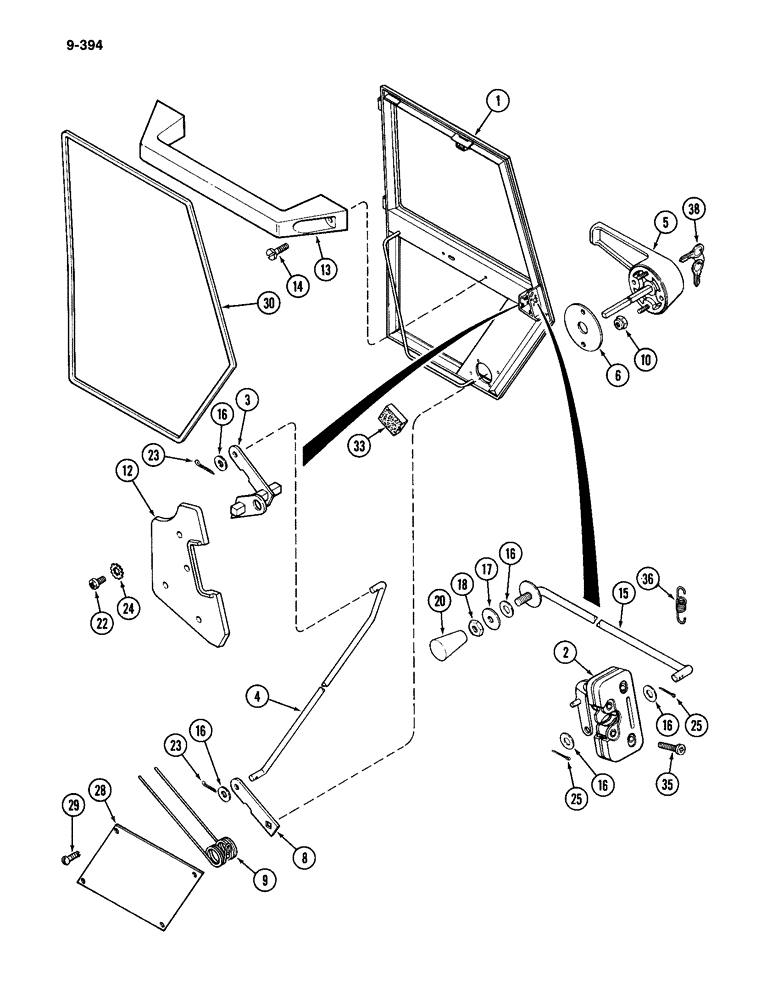

Запчасти Case IH 4994 (9-394) - CAB, DOOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

F97341

DOOR

ASSEMBLY - LH (Includes glasss and trim), Includes: Ref. 1 - 36

1шт.

Order glass and trim from Figure 9-400.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab LH

1шт.

2

F66155

LATCH

ASSEMBLY - door, rotary (Replaces F64296)

1шт.

3

F98228

ARM

- latch

1шт.

4

F64293

ROD

- pull, door lock lower

1шт.

5

F66157

HANDLE

ASSEMBLY - outer

1шт.

6

F64342

GASKET,1.6mm Thk

- handle

1шт.

8

F64289

ARM

- pull rod

1шт.

9

F64431

SPRING

- pull rod

1шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

12

F66086

COVER ASSY

COVER - latch (Replaces F64624 and F98275)

1шт.

13

F64890

HANDLE

- inner (Replaces F64547)

1шт.

14

182-536

SCREW

- pan head slotted, 1/4 NC x 5/8 inch

2шт.

15

F98226

ROD

- pull, upper

1шт.

16

F64384

WASHER

- thrust

5шт.

17

F64340

WASHER

- shoulder

1шт.

18

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex jam lock, 1/4 inch NC

1шт.

20

F64341

KNOB

- latch rod

1шт.

22

182-588

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- Phillips head, 1/4 x 1/2 inch

4шт.

23

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

24

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external lock, 1/4 inch

4шт.

25

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

2шт.

28

F98276

PLATE

- access

1шт.

29

187-1904

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - truss head, No. 10-16 x 1/2 inch

4шт.

30

F64881

SEAL - door (Order F64773 and, Serial Range: cut-length)

1шт.

Ref #30 - Also uses (16) R52631 U-Clips

1шт.

33

F66192

FOAM - door rod, lower

1шт.

35

F45337

SCREW,1/4" - 20 x 1", Gr 5

- latch

4шт.

36

F45162

SPRING

- extension

1шт.

38

A77313

SET OF 2 KEYS

KEY - door and ignition (Set of 2)

1шт.
