Запчасти Case IH 4994 (9-392) - CAB, SIDE WINDOW AND COVERS (09) - CHASSIS/ATTACHMENTS

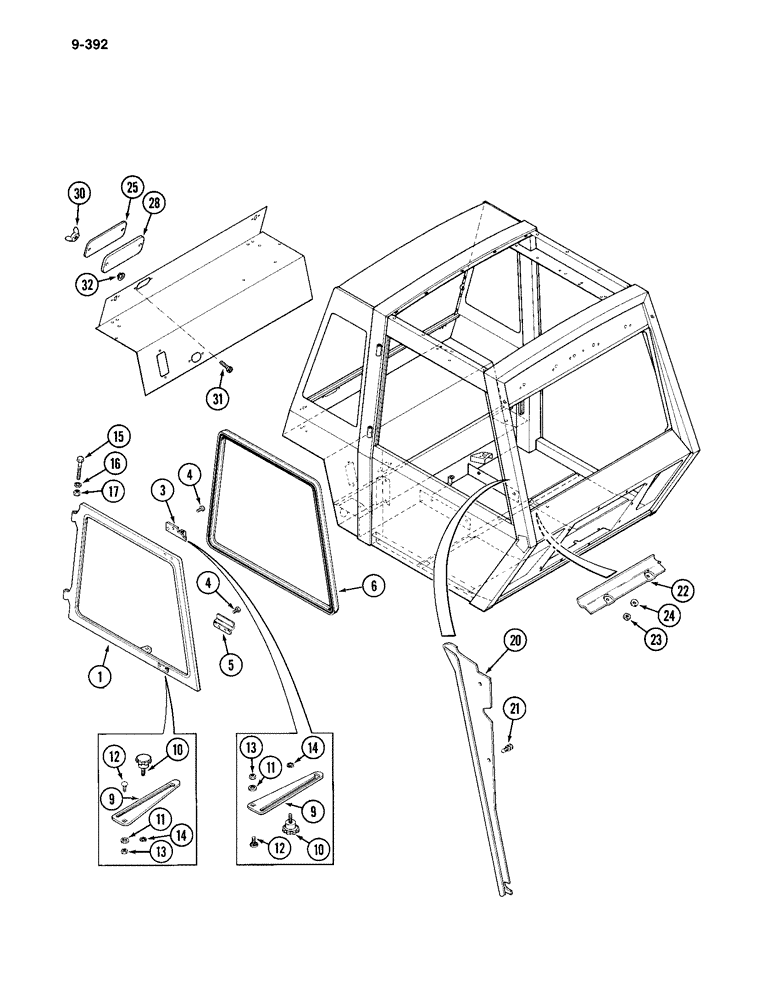

Схема запчастей Case IH 4994 - (9-392) - CAB, SIDE WINDOW AND COVERS (09) - CHASSIS/ATTACHMENTS
30
14
5
9
4
22
17
11
13
25
15
13
24
32
3
6
12
10
16
14
23
9
31
12
4
20
11
21
28
10
1

Артикул

Название

Примечание

Количество

1

F64675

FRAME

- window, side

1шт.

3

F64513

BRACKET

- regulator, upper

1шт.

4

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - indented hex slotted, No. 10 x 1/2 inch

6шт.

5

F64533

HANDLE

- window

1шт.

6

F64571

SEAL

SEAL - window

1шт.

9

F64779

REGULATOR

- window

2шт.

10

F64253

KNOB

- fluted

2шт.

11

195-130

WASHER - flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

6шт.

12

111-266

SCREW

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

13

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

14

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

15

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

16

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, pivot

2шт.

17

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch

2шт.

20

F64614

COVER ASSY

COVER - harness

1шт.

21

F64646

PIN

- speed

2шт.

22

F64727

HARNESS

COVER - harness

1шт.

23

129-119

NUT,1/4"-20, G5

2шт.

24

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

25

F64902

PLATE

- access

1шт.

28

F64903

SEAL

- plate

1шт.

30

129-588

NUT

- wing, No. 10-24

2шт.

31

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- Phillips slotted, No. 10-24

2шт.

32

A165523

FASTENER

- speed, push on

2шт.

Выбрано товаров: 24
