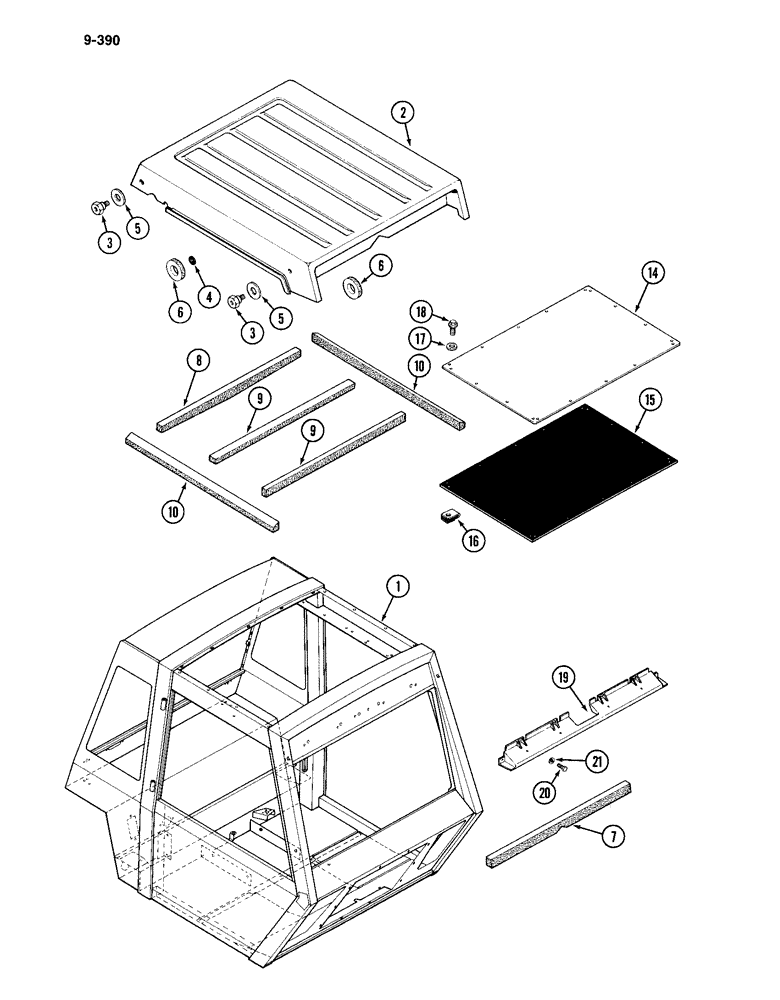

Запчасти Case IH 4994 (9-390) - CAB, FRAME, ROOF CAP AND ROOF (09) - CHASSIS/ATTACHMENTS

F98354

CAB

ASSEMBLY - complete (Machinery item)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

A177245

ROOF

CAP - roof, cab (White) (Replaces A165581)

1шт.

2

A181470

CAP

- roof, cab (Red)

1шт.

3

A163030

BOLT

- cab lifting

4шт.

4

A177335

WASHER

- lift bolt

2шт.

5

A163031

WASHER

- cap mounting

4шт.

6

A166399

WASHER

- cap inner

4шт.

7

A166496

FOAM

- cap, above light bar

1шт.

8

A166493

FOAM

- cap, rear edge

1шт.

9

A166494

FOAM

- cap, center

2шт.

10

A166495

FOAM

- cap, side outer edge

2шт.

14

F64316

ROOF

- cab (Replaces F64794)

1шт.

15

F64781

SEAL

- roof

1шт.

16

131-825

NUT,Tinn, U, 1/4"-20

- speed, 1/4 inch "U" Type

18шт.

17

F64531

SEALING WASHER

WASHER - sealing

18шт.

18

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

BOLT - hex washer, 1/4 x 1 inch

18шт.

19

F66024

SUPPORT

CHANNEL - lamp support, front (Replaces F64606)

1шт.

20

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - indented hex, 1/4 NC x 1/2 inch

6шт.

21

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.
