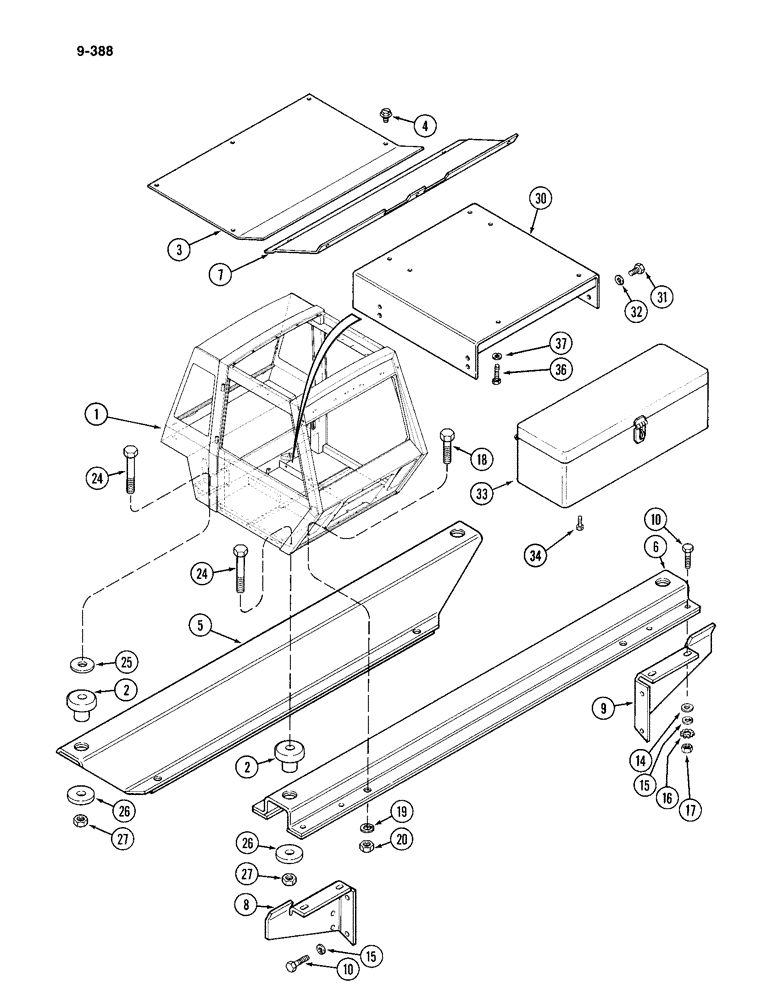

Запчасти Case IH 4994 (9-388) - CAB, MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - cab, (See Figure 9-390)

1шт.

2

A140221

MOUNTING PARTS

MOUNT - cab

4шт.

3

F63508

DOOR

- access, cab floor

1шт.

4

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

BOLT - hex washer head slotted, 1/4 x 5/8 inch self tapping

5шт.

5

A163250

CHANNEL

- rear mounting

1шт.

6

A163248

CHANNEL

- front mounting

1шт.

7

F89769

DOOR

- console floor

1шт.

8

A163245

GUSSET

- cross channel, RH

1шт.

9

A163244

GUSSET

- cross channel, LH

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

14

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

8шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

16

193-72

LOCK WASHER

- internal/eternal lock, 3/8 inch

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

18

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

19

192-215

LOCK WASHER,5/8"

5/8"

8шт.

20

129-107

NUT,5/8"-11, G5

8шт.

24

114-616

BOLT,Hex, 5/8" - 18 x 4", Gr 5

- hex, 5/8 NF x 4 inch

4шт.

25

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- mounting bolt

2шт.

26

A156428

WASHER

- mounting bolt

4шт.

27

131-60

LOCK NUT,5/8"-18

NUT - hex lock, 5/8 inch NF

4шт.

30

A176398

CHANNEL

- seat base, operator

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

D120453

TOOL

BOX - cab

1шт.

34

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW - indented hex washer head, 1/4-20 x 1 inch

2шт.

36

113-175

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch (Grade 8)

4шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
