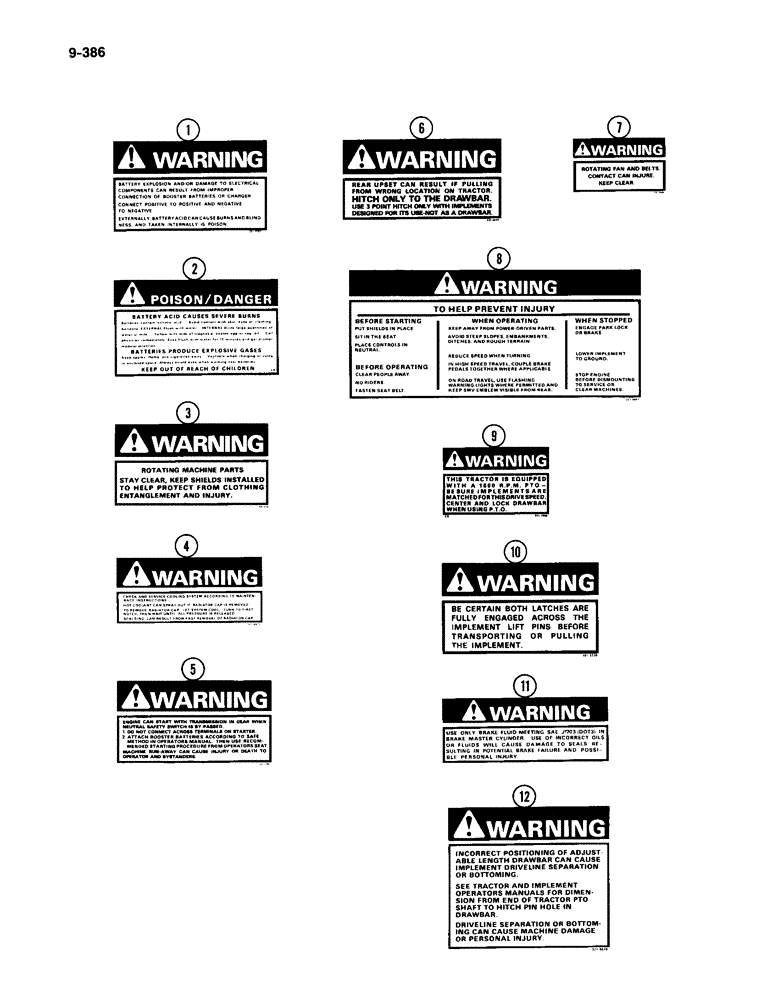

Запчасти Case IH 4994 (9-386) - SAFETY DECALS (09) - CHASSIS/ATTACHMENTS

A67597

DECAL

KIT - safety, Includes: Ref. 1 - 12

1шт.

1

321-3707

DECAL

- booster cable

2шт.

2

321-2996

DECAL

- battery poision

2шт.

3

321-3710

DECAL

- PTO rotating parts

1шт.

4

321-6672

DECAL

- radiator cap

1шт.

5

321-3709

DECAL

- starting motor

1шт.

6

321-3845

DECAL

- drawbar

1шт.

7

321-3596

DECAL

- fan warning

2шт.

8

321-6641

DECAL

- operating procedure

1шт.

9

321-3900

DECAL

- 1000 RPM PTO

1шт.

10

321-3339

DECAL

- latch, hitch

2шт.

11

321-6673

DECAL

- DOT 3 brake fluid

1шт.

12

321-6678

DECAL

- drawbar

1шт.

A46559

DECAL

KIT - French language, includes all decals listed below

1шт.

Kit also includes items listed on Figure 9-384.

1шт.

1

321-5582

DECAL

- booster cable warning

2шт.

2

321-5531

DECAL

- danger poison (on side plated)

2шт.

3

321-6647

DECAL

- rotating parts (on PTO shield)

1шт.

4

321-6701

DECAL

- radiator cap

1шт.

5

321-5581

DECAL

- starting motor

1шт.

7

321-5604

DECAL

- fan warning

2шт.

10

321-5790

DECAL

- warning, implement lift

1шт.

11

321-5580

DECAL

- warning, latch across implement

1шт.

321-5790

DECAL

- warning, implement lift

1шт.

321-5619

DECAL

- operating instructions

1шт.

321-5583

DECAL

- operating instructions

1шт.

321-5735

DECAL

- ROPS

1шт.
