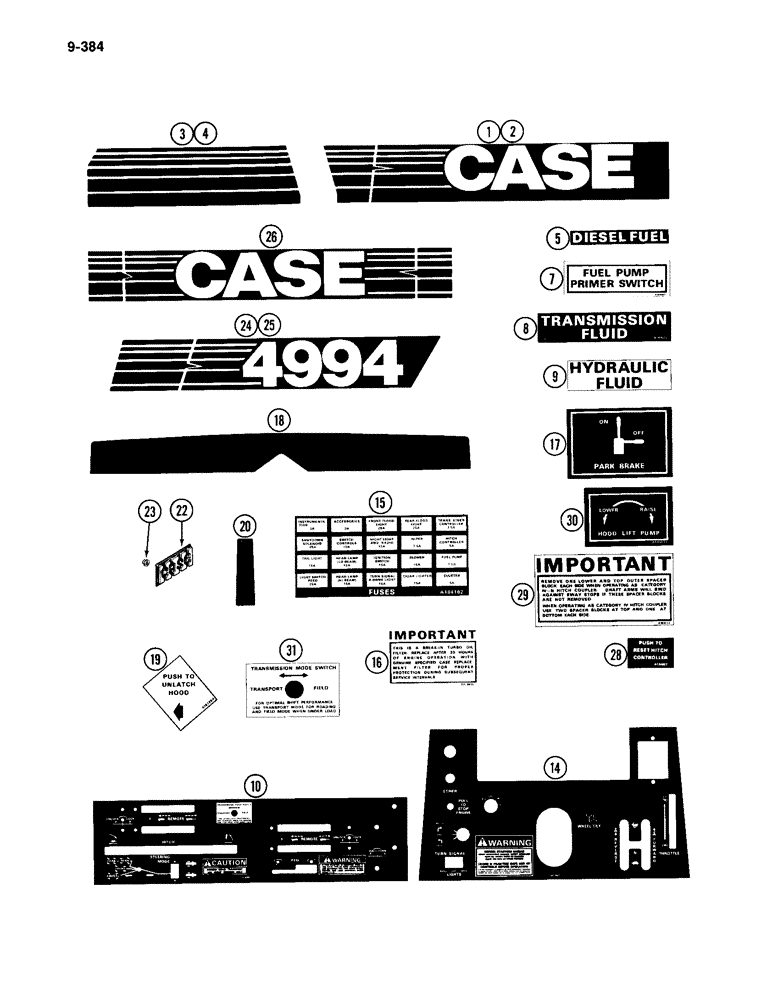

Запчасти Case IH 4994 (9-384) - TRACTOR DECALS, CASE (09) - CHASSIS/ATTACHMENTS

A67598

KIT

DECAL KIT - tractor, complete, Includes: Ref. 1 - 26

1шт.

1

A169046

DECAL

- hood, front RH

1шт.

2

A169045

DECAL

- hood, front LH

1шт.

3

A169052

DECAL

- rear hood, RH

1шт.

4

A169051

DECAL

- rear hood, LH

1шт.

5

321-2601

DECAL

- diesel fuel

2шт.

7

A169067

DECAL

- fuel primer switch

1шт.

8

A169070

DECAL

- transmission fluid

1шт.

9

321-3589

DECAL

- hydraulic fluid

1шт.

10

A181278

DECAL

- console (Replaces A176080)

1шт.

14

A176025

DECAL

- instrument panel

1шт.

15

A177333

DECAL

- fuse location

1шт.

16

321-3915

DECAL

- turbocharger oil filter

1шт.

17

A167688

DECAL

- parking brake

1шт.

18

321-6446

DECAL

- cab roof, front

1шт.

19

A167284

DECAL

- hood unlatch

1шт.

20

321-4142

DECAL

- hood sight

1шт.

22

321-4739

EMBLEM

MEDALLION - Case mark

1шт.

23

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - hex flange, 1/4 inch self threading

2шт.

24

A169959

DECAL

- cab door, RH (4994)

1шт.

25

A169958

DECAL

- cab door, LH (4994)

1шт.

26

A169061

DECAL

- cab rear

1шт.

A67597

DECAL

KIT - safety (See Figure 9-386)

1шт.

28

A164557

DECAL

- reset, hitch (On console)

1шт.

29

A181032

DECAL

- sway block, hitch (On coupler)

1шт.

30

A180031

DECAL

- lift pump, hood

1шт.

31

A181082

DECAL

- transmission mode

1шт.

A46559

DECAL

KIT - French language, includes all decals listed below

1шт.

Kit also includes items listed on Figure 9-386.

1шт.

4

321-5793

DECAL

- diesel fuel only

1шт.

10

A169080

DECAL

- fuse block location (Not used this application)

1шт.

10

A169079

DECAL

- fuse block location

1шт.

321-5536

DECAL

- road speed (Not used this application)

1шт.
