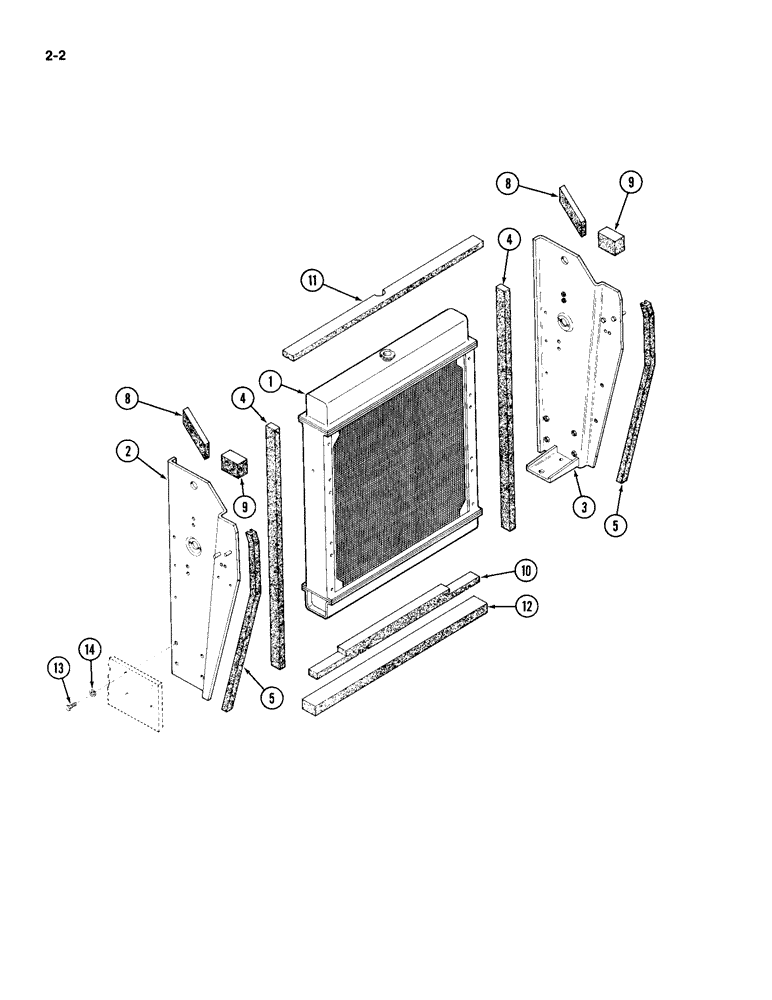

Запчасти Case IH 4994 (2-02) - RADIATOR SUPPORTS AND SEALS (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine coolant (See Figure 2-04)

1шт.

2

A176750

SUPPORT

- radiator, right hand

1шт.

3

A176749

SUPPORT

- radiator, left hand

1шт.

4

A166687

SEAL - radiator side (Order D71360, 50 feet long)

2шт.

5

A169182

SEAL

- support to grille (Order S118701, 300 inch long)

2шт.

8

A169522

PROFILE

SEAL - bypass

2шт.

9

A169523

SEAL

- bypass, top

2шт.

10

A166688

SEAL

SEAL - radiator bottom

1шт.

11

A169181

PROFILE

SEAL - radiator, top tank

1шт.

12

A169120

SEAL

- radiator, lower

1шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.
