Запчасти Case IH 4994 (9-376) - OPERATOR SEAT, AIR AND OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

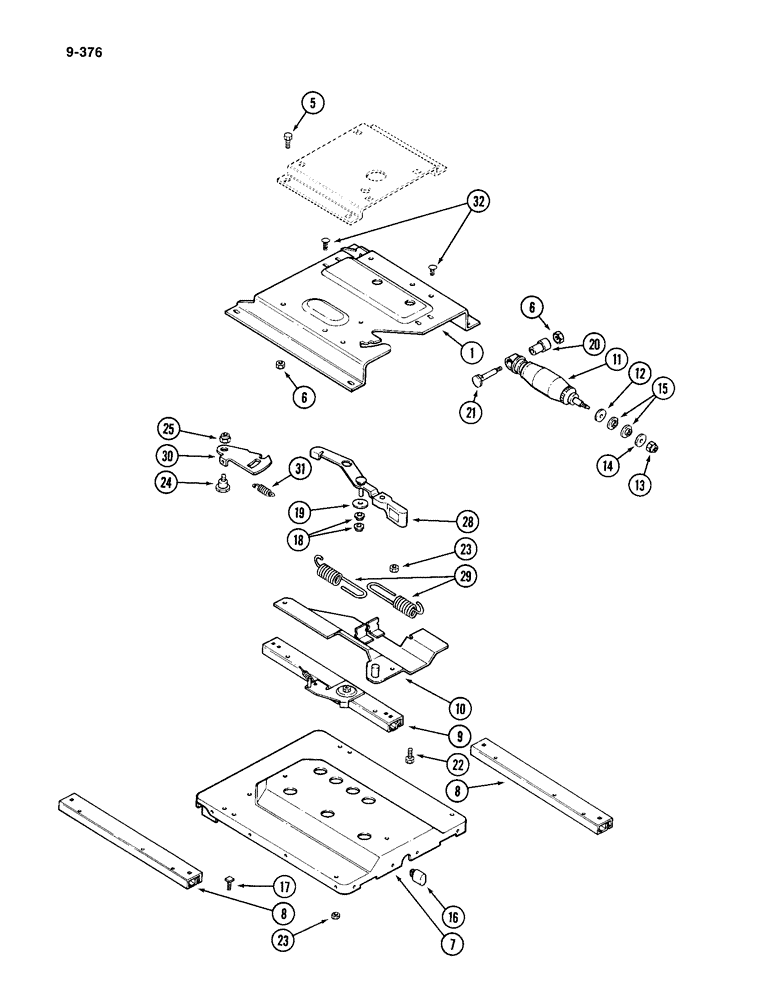

Схема запчастей Case IH 4994 - (9-376) - OPERATOR SEAT, AIR AND OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
23
16
30
8
6
14
24
22
1
15
9
18
29
10
6
7
25
23
17
32
12
31
28
13
19
21
5
20
11
8

Артикул

Название

Примечание

Количество

A176376

SEAT

ASSEMBLY - air/oil suspension (Continued from Figure 9-374), Includes: Ref. 1 - 32

1шт.

A49525

SEAT

ISOLATOR ASSEMBLY - seat

1шт.

REF

INSTRUCTION

SWIVEL ASSEMBLY - seat (See Figure 9-378)

1шт.

1

A49544

PLATE

- top

1шт.

5

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

6

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

7

A49539

CLIP

HOUSING - isolator upper

1шт.

8

A49540

SLIDE

ASSEMBLY - isolator

2шт.

9

A49541

RAIL

SLIDE ASSEMBLY - isolator, with latch

1шт.

10

A49542

BRACKET

- shock absorber mounting

1шт.

11

A49543

SHOCK ABSORBER

- isolator

1шт.

12

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 1/16 inch (10 x 21 x 2 mm)

1шт.

A49619

KIT

MOUNTING KIT - shock absorber, Includes: Ref. 13 - 15

1шт.

13

131-151

LOCK NUT

NUT - hex, 5/16 inch NF

1шт.

14

A49678

WASHER

- mounting, flat

1шт.

15

A49679

BUSHING

- mounting

2шт.

16

A49549

INSULATOR BLOCK

BUMPER - isolator

2шт.

17

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

6шт.

18

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

NUT - push, 1/4 x 17/32 inch

2шт.

19

195-2014

WASHER,.281" x 1 1/8" x .065"

- flat, 9/32 x 1-1/8 x 1/16 inch (7 x 29 x 2 mm)

1шт.

20

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

21

A45056

STEP BOLT

BOLT - shock

1шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

6шт.

23

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

12шт.

24

A49546

BOLT

- shoulder

1шт.

25

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock 3/8 inch NC

1шт.

28

A49545

LEVER

ASSEMBLY - isolator

1шт.

29

A48356

SPRING

- shock absorber

1шт.

30

A49547

LATCH

- isolator

1шт.

31

A49548

SPRING

- latch

1шт.

32

A49622

CLIP

- retaining

2шт.
