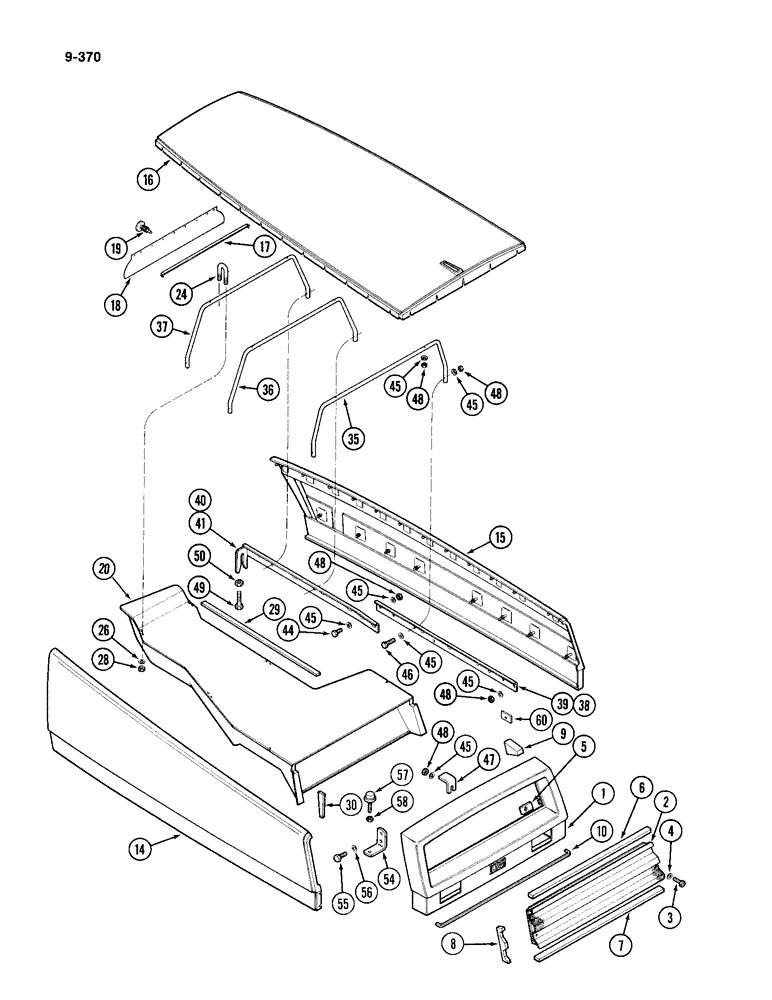

Запчасти Case IH 4994 (9-370) - FRONT HOOD AND UPPER GRILLE (09) - CHASSIS/ATTACHMENTS

1

A165915

GRILLE

ASSEMBLY - upper (White)

1шт.

1

A181499

GRILLE

ASSEMBLY - upper (Red)

1шт.

2

A166611

SCREEN

ASSEMBLY - grille

1шт.

3

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

- hex slotted head, 5/16 x 1-1/4 inch

2шт.

4

195-135

WASHER,3/8" x 7/8" x .066"

- flat, 3/8 x 7/8 x 1/16 inch (10 x 22 x 2 mm)

2шт.

5

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- speed grip, 5/16 inch Tinnerman

2шт.

6

A166684

SEAL - screen, top (Order and cut from A166686)

1шт.

A166686

FOAM

SEAL - 44 inch (1 118 mm)

1шт.

7

A166686

FOAM

SEAL - screen, bottom

1шт.

8

A166639

FOAM

- side, grille

2шт.

9

A166629

FOAM

- side, grille

1шт.

10

A166634

SEAL

FOAM -, Serial Range: grille-grille

1шт.

14

A166681

PANEL

ASSEMBLY - hood, RH (With decal) (White)

1шт.

14

A181501

PANEL

ASSEMBLY - hood, RH (With decal) (Red)

1шт.

15

A166682

PANEL

ASSEMBLY - hood, LH (With decal) (White)

1шт.

15

A181504

PANEL

ASSEMBLY - hood, LH (With decal) (Red)

1шт.

16

A165780

PANEL

HOOD - top center (White)

1шт.

16

A181505

PANEL

HOOD - top center (Red)

1шт.

17

A167778

ANGLE

- curtain mounting

1шт.

18

A167942

CURTAIN

- hood

1шт.

19

A162364

FASTENER

- curtain

9шт.

20

A169475

SCOOP

- air

1шт.

24

L42674

HARDWARE

BOLT - air scoop

4шт.

26

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

8шт.

28

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

29

A177416

SEAL

SEAL - scoop to hood (Replaces A169681)

1шт.

30

A166631

FOAM

- scoop to hood seal

2шт.

35

A166431

TUBE

- support, front

1шт.

36

A166432

TUBE

- support, center

1шт.

37

A166433

TUBE

- support, rear

1шт.

38

A167909

ANGLE

- hood support, RH

1шт.

39

A167910

ANGLE

- hood support, LH

1шт.

40

A166938

SUPPORT

- hood, RH rear

1шт.

41

A166939

SUPPORT

- hood, LH rear

1шт.

44

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

45

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

57шт.

46

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

47

A169689

CLIP

-, Serial Range: grille-hood

3шт.

48

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

63шт.

49

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

50

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

54

A169244

SUPPORT

- hood stop

2шт.

55

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

56

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

57

A145178

WAD

BUMPER - hood stop

2шт.

58

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

60

A180066

WASHER

- plate, hood

24шт.
