Запчасти Case IH 4994 (9-368) - LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

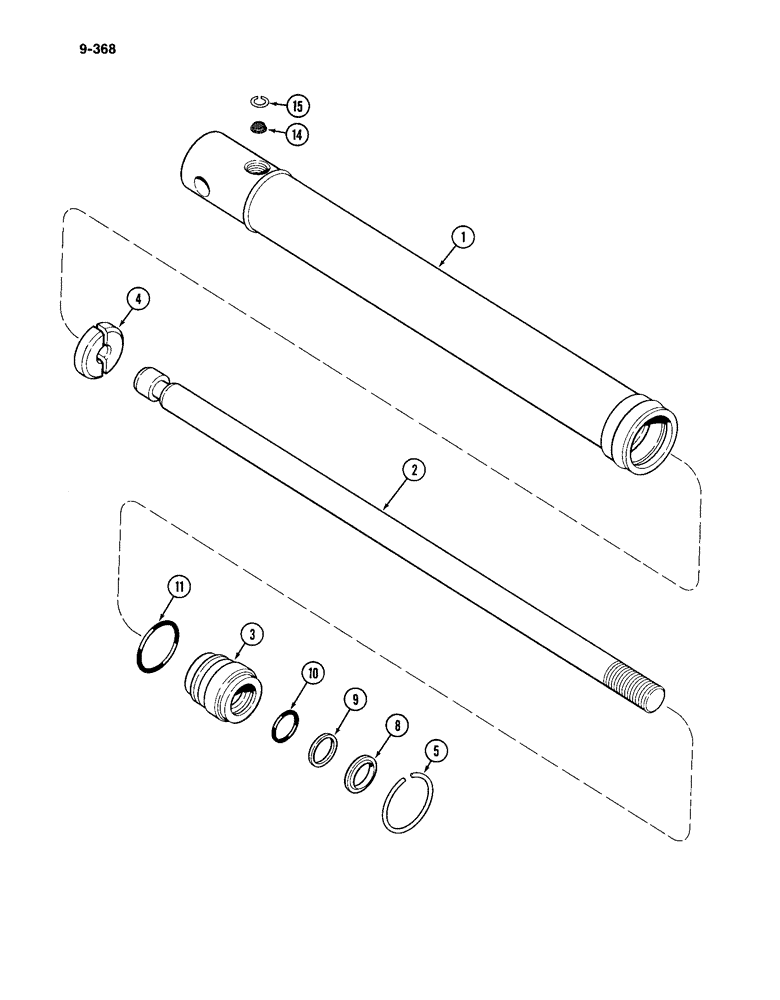

Схема запчастей Case IH 4994 - (9-368) - LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS
1
5
9
10
15
3
8
11
4
2
14

Артикул

Название

Примечание

Количество

A166600

CYLINDER ASSY.

CYLINDER ASSEMBLY - hood lift, Includes: Ref. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

ROD - plunger

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - stop, split (two halves)

1шт.

5

A48970

RING, SNAP

RING - retaining

1шт.

A48891

SEAL

KIT - cylinder, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - plunger

1шт.

9

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- gland

1шт.

11

L15042

O-RING - gland

1шт.

14

A48969

FILTER SCREEN

SCREEN - filter

1шт.

15

A48968

RING, SNAP

RING - retaining

1шт.

Выбрано товаров: 13
