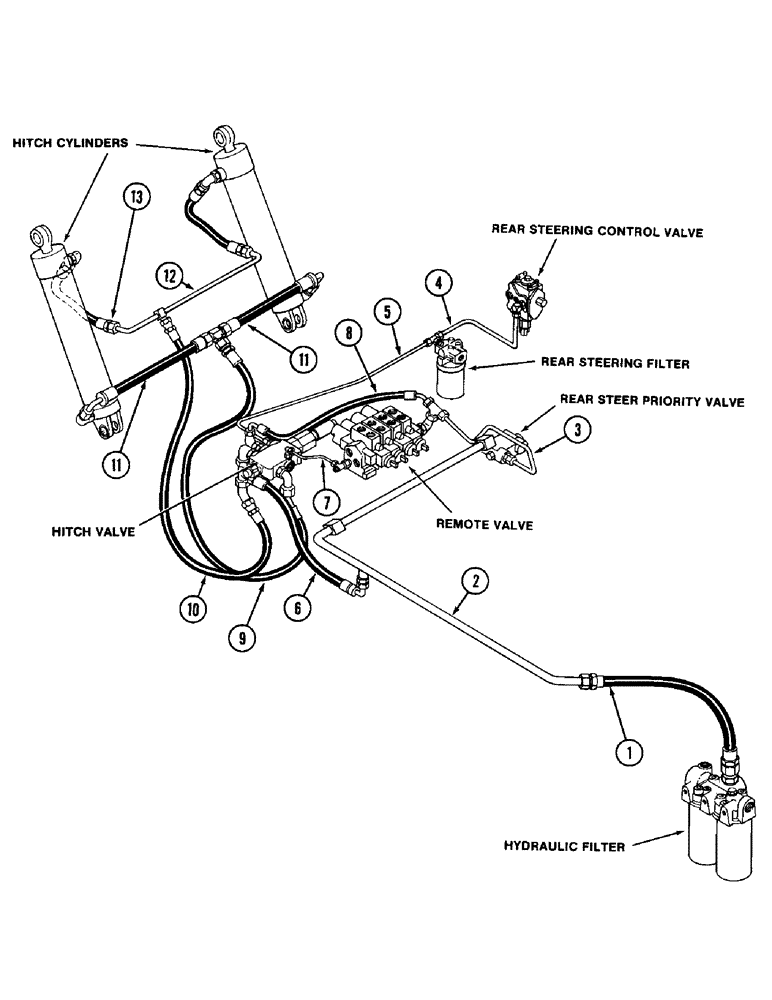

Запчасти Case IH 4994 (1-21) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Filter hose to remote drain tube, Page 8-281

1шт.

2

Remote valve drain tube, Page 8-301

1шт.

3

Remote valve to rear steer priority tube, Page 8-333

1шт.

4

Rear steer control valve to steering filter tube, Page 5-139

1шт.

5

Hitch valve to rear steer filter tube, Page 8-333

1шт.

6

Hitch valve drain hose, Page 8-301

1шт.

7

Hitch valve sensing tube, Page 8-301

1шт.

8

Hitch valve to remote valve hose, Page 8-333

1шт.

9

Hitch valve to hitch cylinder supply hose, Page 8-335

1шт.

10

Hitch drain hose, Page 8-335

1шт.

11

Hitch cylinder pressure hose, Page 8-335

1шт.

12

Hitch cylinder return tube, Page 8-335

1шт.

13

Hitch cylinder return hose, Page 8-335

1шт.
