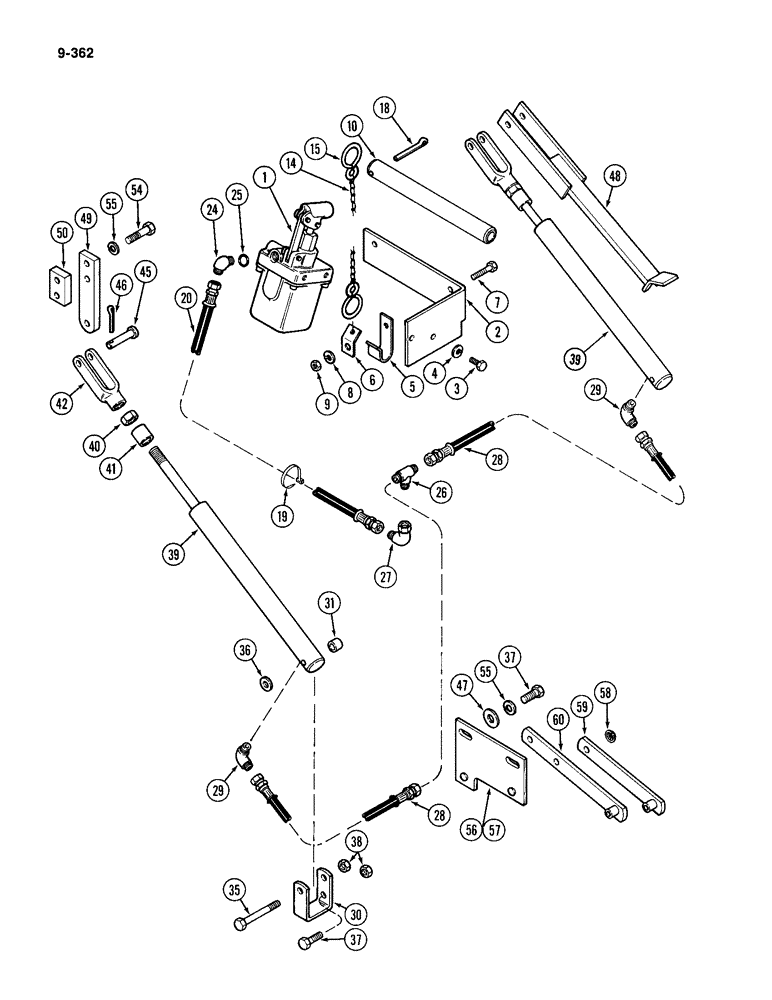

Запчасти Case IH 4994 (9-362) - HOOD HINGE AND LIFT (09) - CHASSIS/ATTACHMENTS

1

A163459

PUMP

ASSEMBLY - hood lift (See Figure 9-364)

1шт.

2

A165358

BRACKET

- pump mounting

1шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

A167304

CLIP

- handle

2шт.

6

H397281

RETAINER

- chain

1шт.

7

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A166968

HANDLE

- pump

1шт.

14

D20505

CHAIN - handle

1шт.

15

A27643

HOOK

- chain

2шт.

18

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

G35433

HOSE

ASSEMBLY - lift pump

1шт.

24

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 7/16-20 thread x 3/8 tube thread, Incl. Ref. 25

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

26

218-593

TEE,9/16"-18, 37 Degree

- union, flare, 3/8 tube 9/16-18 inch thread

1шт.

27

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 3/8 tube 9/16- inch thread

1шт.

28

G100431

HYDRAULIC HOSE,6.35 mm ID x 1168.40 mm, SAE 100R1

Assy - Lift cylinder 6.35 mm ID x 1168.40 mm, SAE 100R1

2шт.

29

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 3/8 tube 9/16-18 thread x 1/8 inch PT

2шт.

30

A167239

CYLINDER

ANCHOR - lift

2шт.

31

S114110

SPACER - cylinder pivot

2шт.

35

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

36

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

2шт.

37

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

38

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex lock, 1/2 inch NC

4шт.

39

A166600

CYLINDER ASSY.

CYLINDER ASSEMBLY - hood lift (See Figure 9-368)

2шт.

40

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

2шт.

41

L10083

BUSHING

- pivot

2шт.

42

S71146

YOKE

- adjustable

2шт.

45

S10811

CLEVIS PIN

PIN - clevis

2шт.

46

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

47

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

12шт.

48

A169815

LOCK

- lift cylinder (On LH cylinder)

1шт.

49

A167789

BRACKET

- mounting, lift cylinder

2шт.

50

A169347

SPACER

- bracket

2шт.

54

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

55

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

56

A166427

PIVOT

- hood, upper RH

1шт.

57

A166567

PIVOT

- hood, upper LH

2шт.

58

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

8шт.

59

A176751

PIVOT

- upper arm

2шт.

60

A176752

PIVOT

- lower arm

2шт.
