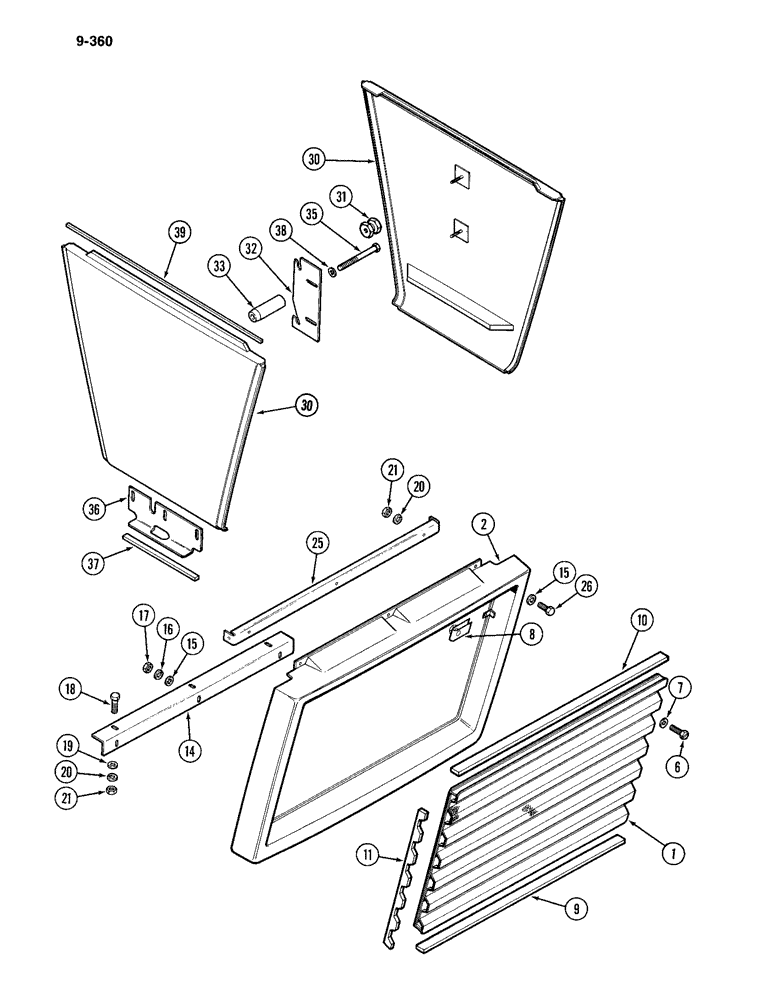

Запчасти Case IH 4994 (9-360) - LOWER FRONT GRILLE AND PANELS (09) - CHASSIS/ATTACHMENTS

1

A166592

SCREEN

ASSEMBLY - lower grille

1шт.

2

A165782

GRILLE

- lower (White)

1шт.

2

A181497

GRILLE

- lower (Red)

1шт.

6

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

- hex slotted, 5/16 NC x 1-1/4 inch

2шт.

7

195-135

WASHER,3/8" x 7/8" x .066"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

8

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- speed, 5/16 inch Tinnerman

2шт.

9

A166685

SEAL - lower, screen (Order A166686 and, Serial Range: cut-length)

1шт.

10

A166686

FOAM

SEAL - upper, screen (Order A166686 and, Serial Range: cut-length)

1шт.

11

A166676

FOAM

SEAL - side, screen

2шт.

14

A166544

ANGLE

- support, bottom

1шт.

15

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

7шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

11шт.

17

9635082

NUT,5/16" - 18, Gr 5

7шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

19

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

25

A166550

SUPPORT

- upper, grille

1шт.

26

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

30

A165775

PANEL

- wing, side (White)

2шт.

30

A181498

PANEL

- wing, side (Red)

2шт.

31

A147282

SPOOL

- panel lock

4шт.

32

A147283

BRACKET

- support,side panel

2шт.

33

H94581

PLUG

SPACER - joint

4шт.

35

113-159

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

4шт.

36

A169680

BRACE

SUPPORT - wing panel

2шт.

37

A167333

FOAM

SEAL - panel support

2шт.

38

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

4шт.

39

A166633

FOAM - upper,wing panel (Order A166634 and, Serial Range: cut-length)

2шт.
