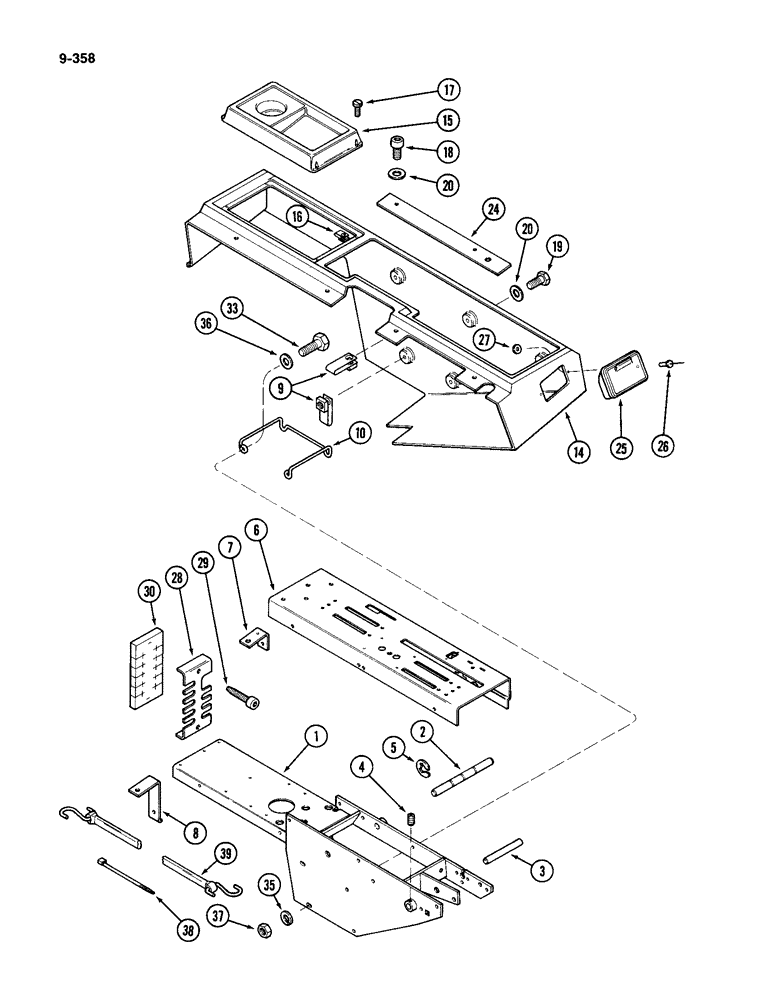

Запчасти Case IH 4994 (9-358) - OPERATOR CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A166928

CONSOLE

- operator

1шт.

2

A162325

SHAFT

- lever, rear

1шт.

3

A162326

SHAFT

- lever, front

1шт.

4

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket headless, 1/4 NC x 1/4 inch

1шт.

5

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

6

A181263

PANEL

- control (Replaces A176033) (For decal, see Figure 9-384)

1шт.

7

A162593

BRACKET

- cowling, upper

3шт.

8

A169075

BRACKET

- cowling, rear

1шт.

9

131-97

SPRING NUT,Tinn, U, 5/16"-18

- speed, 5/16 inch Tinnerman

6шт.

10

A167290

SUPPORT ASSY.

SUPPORT - console, lower

1шт.

14

A177868

COWL

ING - console (Replaces A169076)

1шт.

15

A169068

COVER ASSY

COVER - control

1шт.

16

131-605

NUT,Tinn, U, #8

- speed, No. 8 Tinnerman "U" type

4шт.

17

187-1052

SELF-TAP SCREW,Sltd Pan, Hd, #8 x 5/8"

SCREW - slotted pan head, No. 8 x 5/8 inch

4шт.

18

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - indented hex, 5/16 x 3/4 inch

7шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

20

195-2038

WASHER,13/32" x 7/8" x .035"

- flat, 13/32 x 7/8 x 3/64 inch (10 x 22 x 1 mm)

9шт.

24

A162277

COVER

- control access

1шт.

25

A165449

ASH TRAY

TRAY - ash

1шт.

26

151-548

RIVET,Pop, 1/8" x .462"

- pop, 1/8 x 1/4 inch

2шт.

27

195-507

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch (4 x 10 x 1 mm)

2шт.

28

A169101

PLATE

- console cable

1шт.

29

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - indented hex, 1/4 x 1-1/2 inch self tapping

2шт.

30

A151093

FOAM

- console cable

1шт.

33

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

4шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

36

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

4шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

39

A147815

STRAP

ASSEMBLY - tie down, cable

1шт.
