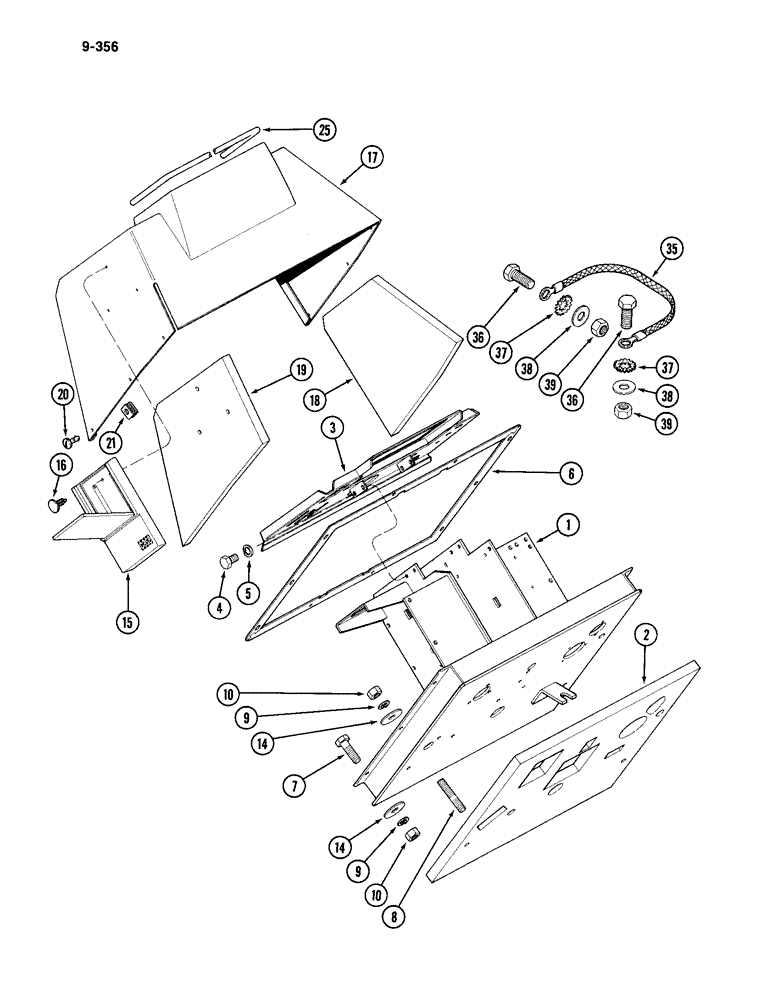

Запчасти Case IH 4994 (9-356) - INSTRUMENT PANEL AND COWL (09) - CHASSIS/ATTACHMENTS

1

A166772

SUPPORT

- cockpit

1шт.

2

A163902

PAD

- support

1шт.

3

A176136

PANEL

- instrument

1шт.

4

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

A162986

GASKET

- support

2шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

8

A59077

STUD

- mounting, support

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

14

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch (11 x 25 x 2 mm)

12шт.

15

A177276

PULLEY

BOX - manual, operator (Replaces A169003)

1шт.

16

A162364

FASTENER

- manual box

3шт.

17

A164214

COWL

ING - cockpit

1шт.

18

A149411

INSULATOR

PAD - cowling, LH

1шт.

19

A149412

FOAM

PAD - cowling, RH

1шт.

20

A75390

STUD

- fastener, cowling

6шт.

21

A36042

CLIP

NUT - clip

6шт.

25

A76234

ROPE

CORD - manual

1шт.

35

A64704

STRAP

- ground

1шт.

36

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

37

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

38

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

2шт.

39

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
