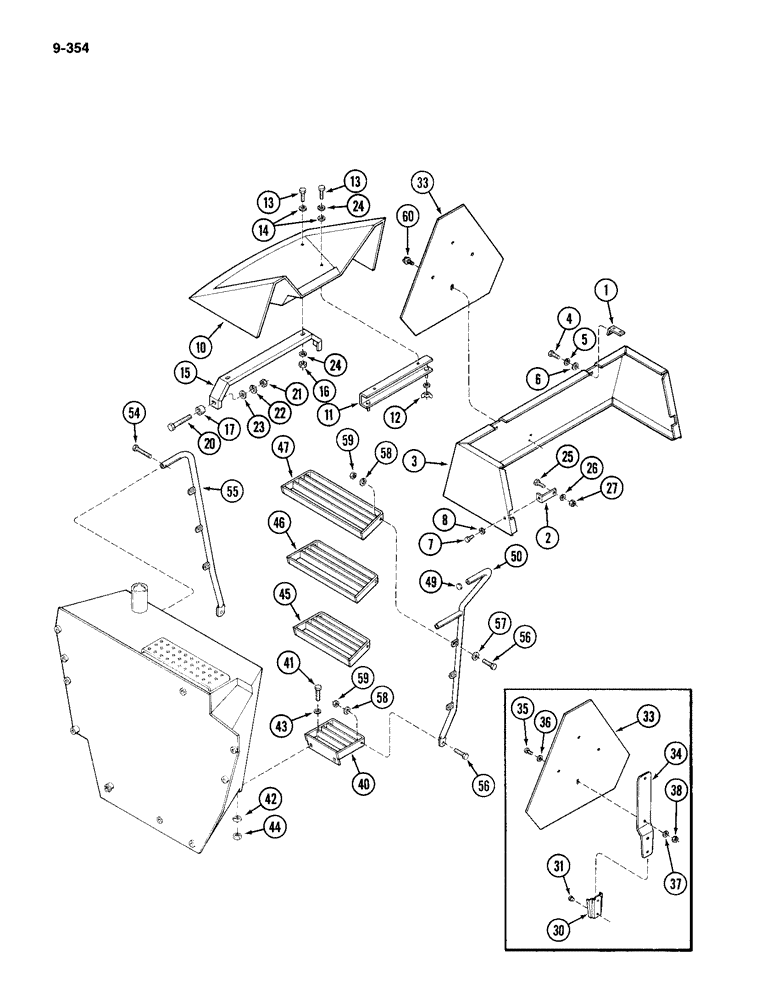

Запчасти Case IH 4994 (9-354) - REAR DECK, STEPS AND HAND RAILS (09) - CHASSIS/ATTACHMENTS

1

A165580

BRACKET

- rear cover

2шт.

2

A167168

BRACKET

- rear cover

2шт.

3

A165309

COVER

- rear

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A169161

COVER

- frame, rear (White)

1шт.

10

A181473

COVER

- frame, rear (Red)

1шт.

11

A176368

SUPPORT

- rear frame cover

1шт.

12

129-566

WING NUT,Locking, 5/16"-18

NUT - locking wing, 5/16 inch NC

2шт.

13

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

15

A176319

SUPPORT

BRACE - rear cover

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

A176331

SPACER

- brace

2шт.

20

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

25

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

30

A59457

BRACKET

SOCKET - SMV emblem (If equipped)

1шт.

31

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16 x 33/64 inch

2шт.

33

D123347

WARNING SIGN

EMBLEM - SMV

1шт.

34

A59451

BRACKET

- emblem (If equipped)

1шт.

35

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- pan head, 1/4 NC x 5/8 inch

2шт.

36

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 inch (7 x 16 x 2 mm)

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

40

A167648

STEP

- bottom

1шт.

41

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/16 inch (10 x 27 x 5 mm)

2шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

45

A165924

STEP

- number two

1шт.

46

A165930

STEP

- number three

1шт.

47

A177291

STEP

- number four

1шт.

49

41-1020

PLUG,Cup, 1 1/4"

- cap, 1-1/4 inch

1шт.

50

A165944

RAIL

- hand, LH front

1шт.

54

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

55

A165942

RAIL

- hand, LH rear

1шт.

56

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

57

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/16 inch (10 x 27 x 5 mm)

8шт.

58

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

59

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

60

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - indented hex washer head, 1/4 NC x 1/2 inch

2шт.
