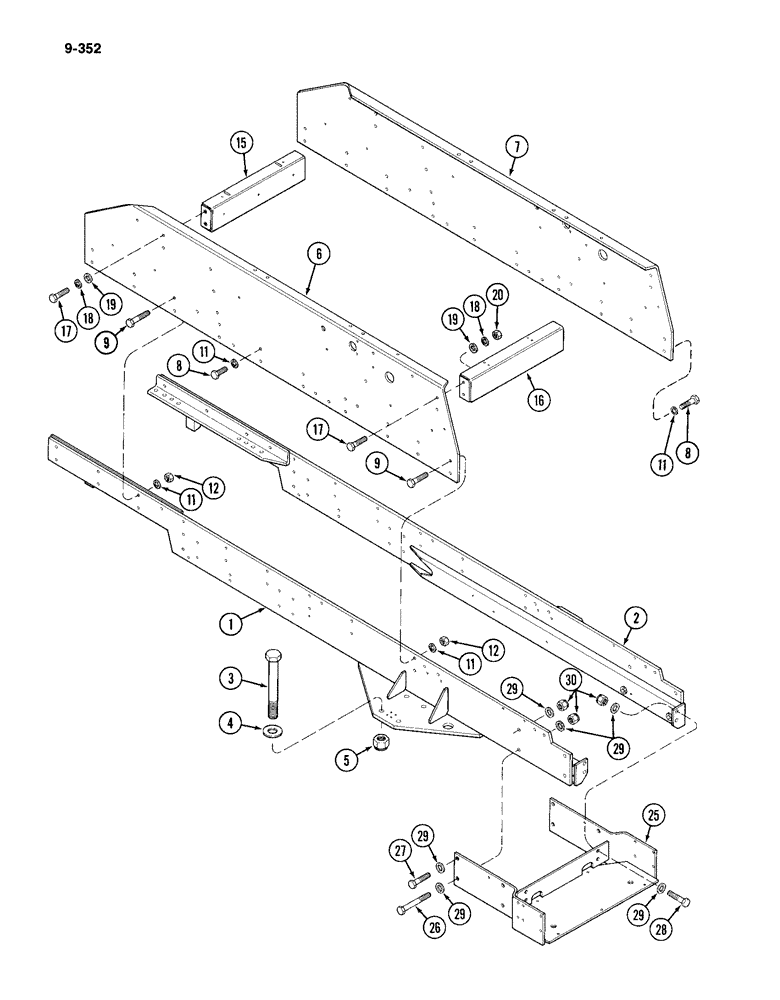

Запчасти Case IH 4994 (9-352) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

A177748

SILL

- chassis, right-hand (Replaces A169020)

1шт.

2

A177747

SILL

- chassis, left-hand (Replaces A169019)

1шт.

3

28-18152

BOLT,Hex, 1-1/8" - 12 x 9-1/2", Gr 8

- hex, 1-1/8 NF x 9-1/2 inch

8шт.

4

A152201

WASHER

- mounting bolt

8шт.

5

131-189

LOCK NUT,1 1/8"-12, GB

NUT - hex lock, 1-1/8 inch NF

8шт.

6

A177746

PLATE

- side, right-hand (Replaces A166820)

1шт.

7

A177745

PLATE

- side, left-hand (Replaces A166819)

1шт.

8

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

9шт.

9

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

18шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

40шт.

12

129-107

NUT,5/8"-11, G5

25шт.

15

A176132

SPACER

- side plate, rear

1шт.

16

A164050

SPACER

- side plate, front

1шт.

17

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

18

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 mm)

8шт.

20

129-107

NUT,5/8"-11, G5

4шт.

25

A166770

FRAME ASSY

FRAME - extension

1шт.

26

28-1284

BOLT,Hex, 3/4" - 16 x 5-1/4", Gr 8

- hex, 3/4 NF x 5-1/4 inch (Grade 8)

4шт.

27

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

- hex, 3/4 NF x 3 inch (Grade 8)

4шт.

28

28-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 8

- hex, 3/4 NF x 2-3/4 inch (Grade 8)

4шт.

29

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- mounting bolt, hardened

24шт.

30

131-186

LOCK NUT,3/4"-16, GB

NUT - hex lock, 3/4 inch NF

12шт.
