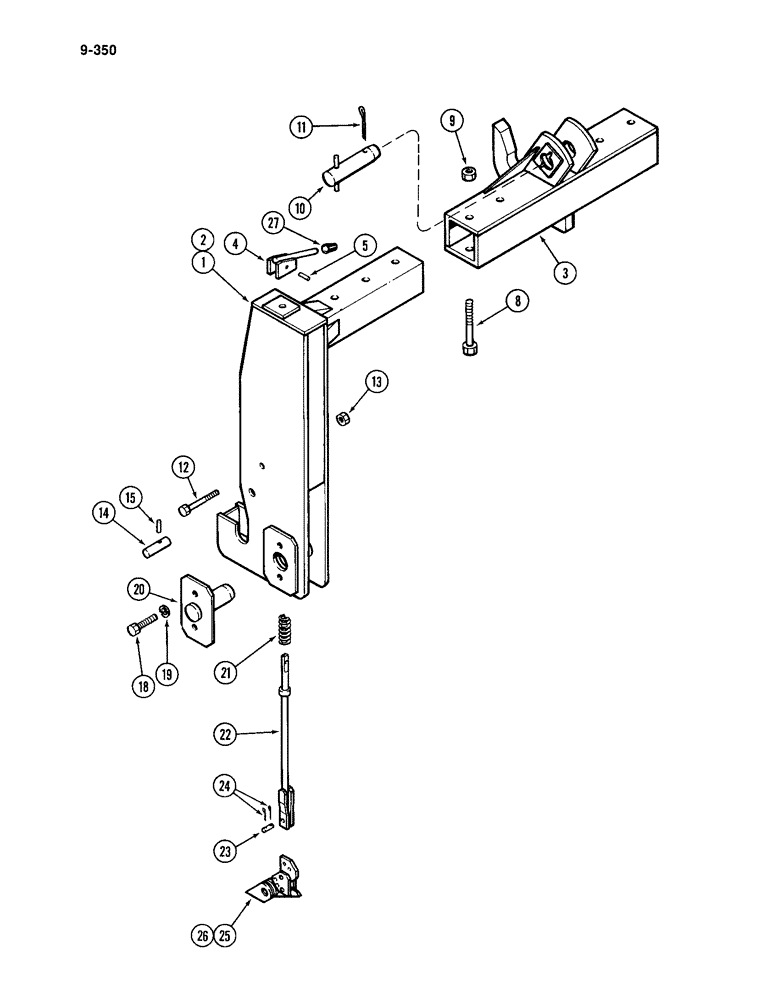

Запчасти Case IH 4994 (9-350) - QUICK HITCH COUPLER ASSEMBLY, CATEGORY 4-4N (09) - CHASSIS/ATTACHMENTS

A177275

COUPLER ASSEMBLY - hitch (Machinery Item), Includes: Ref. 1 - 27

1шт.

1

A49695

BRACKET

- arm, right-hand

1шт.

2

A49696

BRACKET

- arm, left-hand (right-hand shown)

1шт.

3

A49701

MAST ASSEMBLY

MAST - hitch

1шт.

4

A44472

HANDLE

- release, hitch

2шт.

5

135-75

GROOVED PIN,1/4" x 1", Type A

Pin, Grooved, 1/4" x 1", Type A

2шт.

8

113-2715

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex, 3/4 NC x 6 inch

4шт.

9

131-385

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

10

A49703

PIN

- pivot, third link

1шт.

11

138-314

LOCK PIN,9.53mm OD x 57.15mm L, Coiled

PIN - clinch, 3/8 x 2-1/2 inch

1шт.

12

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

13

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex lock, 1/2 inch NC

2шт.

14

A49700

PIN

- lever

2шт.

15

135-56

GROOVED PIN,3/16" x 1 1/2", Type A

Pin, Grooved, 3/16" x 1 1/2", Type A

2шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20

A49702

PIN

- lever, lower

2шт.

21

A46461

SPRING

- lock rod

2шт.

22

A49699

ROD

- lock, hitch

2шт.

23

A45460

PIN

- lock rod

2шт.

24

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

25

A49698

LEVER

ASSEMBLY - lock, right-hand (shown)

1шт.

26

A49697

LEVER

ASSEMBLY - lock, left-hand

1шт.

27

T52899

HANDLE

CAP - end, lever

2шт.
