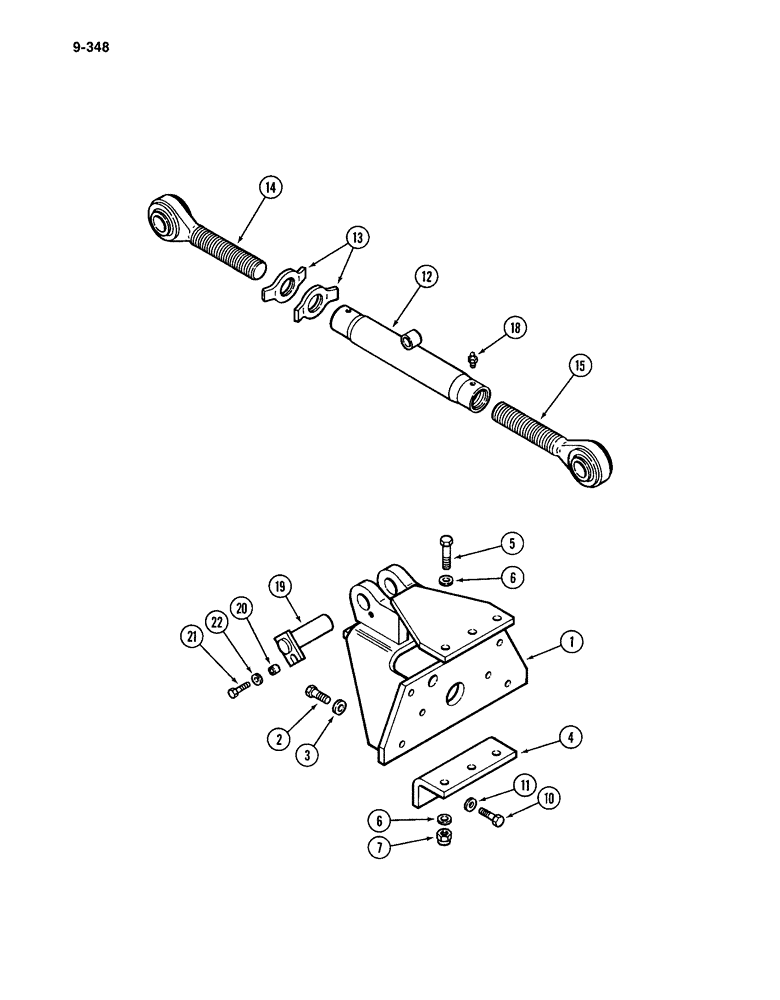

Запчасти Case IH 4994 (9-348) - THREE POINT HITCH ADJUSTING TURNBUCKLE (09) - CHASSIS/ATTACHMENTS

1

A177319

BRACKET

- third link

1шт.

2

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch (Two used without PTO)

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened (Two used without PTO)

4шт.

4

A164879

ANGLE

- support, third link

1шт.

5

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch

3шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

6шт.

7

131-197

LOCK NUT,3/4"-10, GC

NUT - hex lock, 3/4 inch NC

3шт.

10

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch

2шт.

11

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, hardened

2шт.

12

A165132

TURNBUCKLE

- third link

1шт.

13

A165043

STRIP

TAB - lock

2шт.

14

A165053

ROD

ASSEMBLY - third link (right-hand thread)

1шт.

15

A165118

ROD

ASSEMBLY - third link (left-hand thread)

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8 inch straight

2шт.

19

A177207

PIN

- link, hitch

1шт.

20

A148908

SPACER

- pin bolt

1шт.

21

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

- hex Nylok, 1/2 NC x 1-1/2 inch

1шт.

22

L30674

WASHER

- flat, hardened

1шт.
