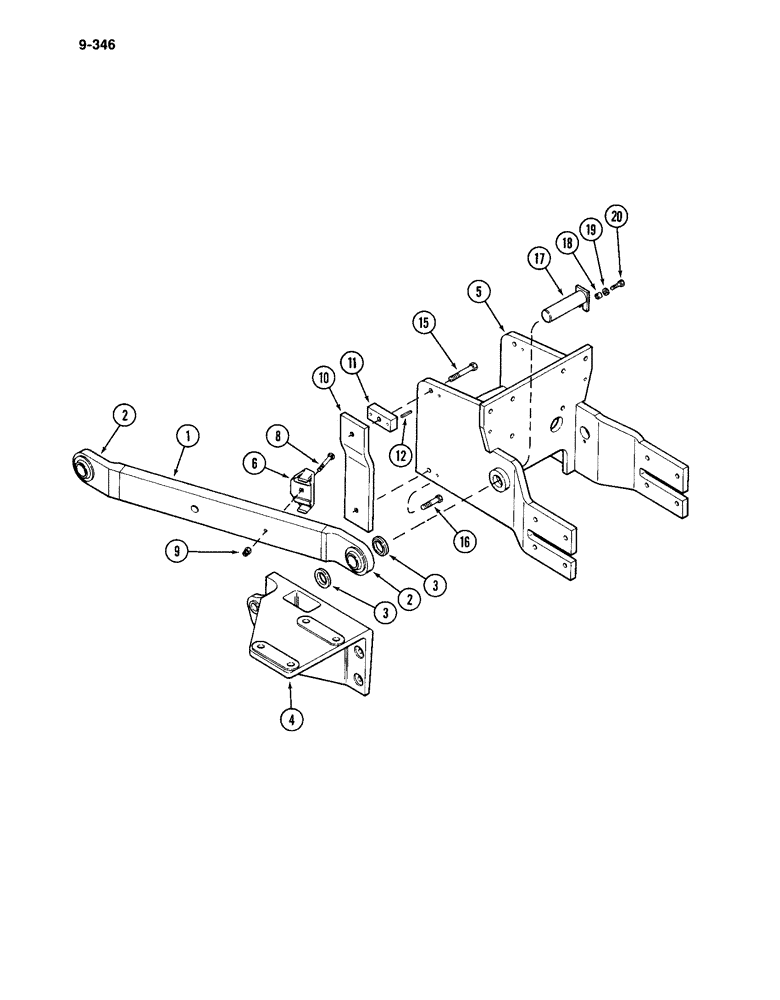

Запчасти Case IH 4994 (9-346) - THREE POINT HITCH DRAFT ARMS AND SUPPPORTS (09) - CHASSIS/ATTACHMENTS

1

A177264

ARM, LIFT

ARM ASSEMBLY - draft, Includes: Ref. 2

2шт.

2

A177266

END

PIVOT ASSEMBLY - draft arm

2шт.

3

A177309

SPACER

- pivot

4шт.

4

REF

INSTRUCTION

BRACE - drawbar (See Figure 9-342)

2шт.

5

REF

INSTRUCTION

SUPPORT - drawbar (See Figure 9-342)

1шт.

6

A162757

BLOCK

- sway

2шт.

8

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5

2шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

10

A177261

STOP

- sway

2шт.

11

A177262

SPACER

ASSEMBLY - sway top, Includes: Ref. 12

2шт.

12

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

15

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

BOLT - hex, 3/4 NC x 2-1/4 inch

2шт.

16

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

17

A177226

PIN

- pivot, draft arm

2шт.

18

A148908

SPACER

- pivot pin bolt

2шт.

19

L30674

WASHER

- flat, hardened

2шт.

20

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

- hex lock, 1/2 NC x 1-1/2 inch

2шт.
