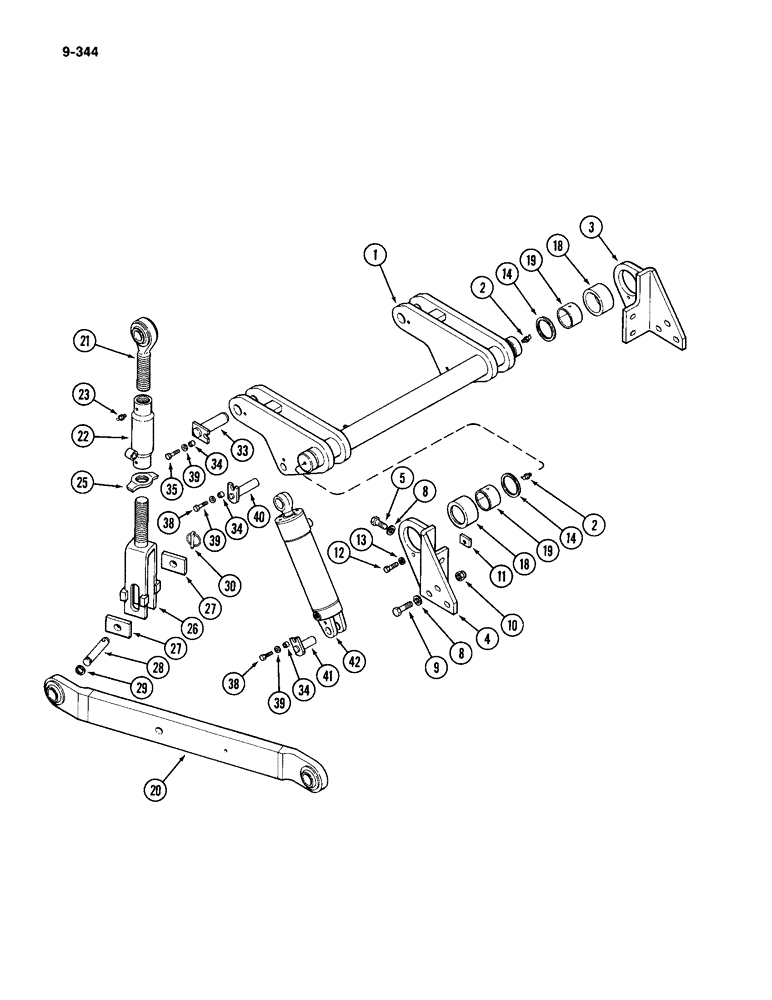

Запчасти Case IH 4994 (9-344) - THREE POINT HITCH LIFT LINKS AND ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1

A177085

ROCKSHAFT

- hitch, Includes: Ref. 2

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 45 degree 1/8 inch

2шт.

3

A164883

SUPPORT

PLATE - bearing, left-hand

1шт.

4

A164884

PLATE

- bearing, right-hand

1шт.

5

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch

4шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

16шт.

9

28-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 8

- hex, 3/4 NF x 2-3/4 inch

6шт.

10

131-186

LOCK NUT,3/4"-16, GB

NUT - hex lock, 3/4 inch NF

6шт.

11

A146768

KEY

- retainer

2шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

193-23

LOCK WASHER,Int Tooth, #5

WASHER - lock, 1/2 inch

2шт.

14

A32804

WASHER

- thrust

2шт.

18

A165734

ROCKSHAFT

HOUSING ASSEMBLY - bearing, Includes: Ref. 19

2шт.

19

A165736

BUSHING

BEARING - rockshaft

1шт.

20

REF

INSTRUCTION

ARM ASSEMBLY - draft arm, See Figure 9-346

2шт.

21

A165061

ROD

ASSEMBLY - lift link

2шт.

22

A165124

TURNBUCKLE

- lift link

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8 inch straight

2шт.

25

A165043

STRIP

TAB - lock, lift link

2шт.

26

A165127

CLEVIS

- lift link

2шт.

27

A165130

PLATE - clevis

2шт.

28

A164897

PIN

- lift link

2шт.

29

17406

RING

- snap

2шт.

30

A64204

PIN

ASSEMBLY - lock

2шт.

33

A177207

PIN

- link, hitch

2шт.

34

A148908

SPACER

- pin bolt

6шт.

35

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

2шт.

38

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-1/4 inch

4шт.

39

L30674

WASHER

- pin bolt

6шт.

40

A177186

PIN

- cylinder, upper

2шт.

41

A177279

PIN

- cylinder, lower

2шт.

42

G107789

CYLINDER

ASSEMBLY - lift, hitch (See Figure 8-338)

2шт.
