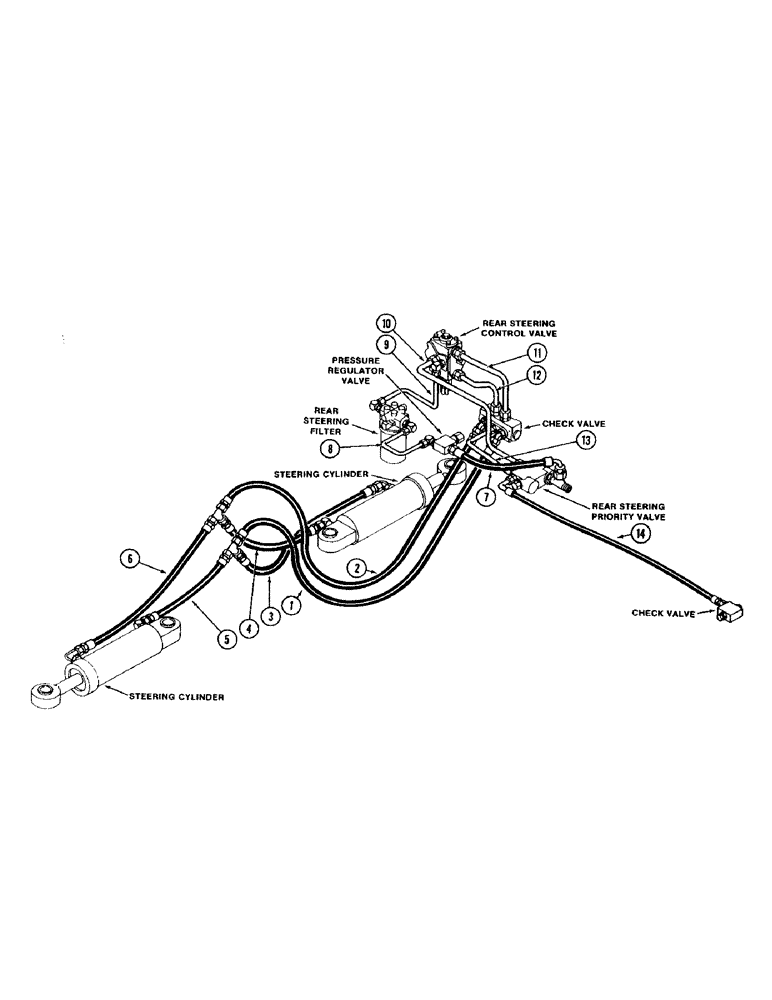

Запчасти Case IH 4994 (1-19) - PICTORIAL INDEX, REAR STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Check valve to cylinder hose, Page 5-141

1шт.

2

Check valve to cylinder hose, Page 5-141

1шт.

3

Left outer steering cylinder hose, Page 5-141

1шт.

4

Left inner steering cylinder hose, page 5-141

1шт.

5

Right inner steering cylinder hose, Page 5-141

1шт.

6

Right outer steering cylinder hose, Page 5-141

1шт.

7

Regulator valve to rear priority valve hose, Page 5-139

1шт.

8

Steering filter inlet hose, page 5-143

1шт.

9

control valve to steering filter tube, Page 5-139

1шт.

10

control valve to rear priority valve tube, Page 5-139

1шт.

11

Control valve to check valve top tube, Page 5-141

1шт.

12

Control valve to check valve bottom tube, Page 5-141

1шт.

13

Check valve sensing tube, page 5-141

1шт.

14

Priority valve to shuttle valve hose, Page 5-139

1шт.
