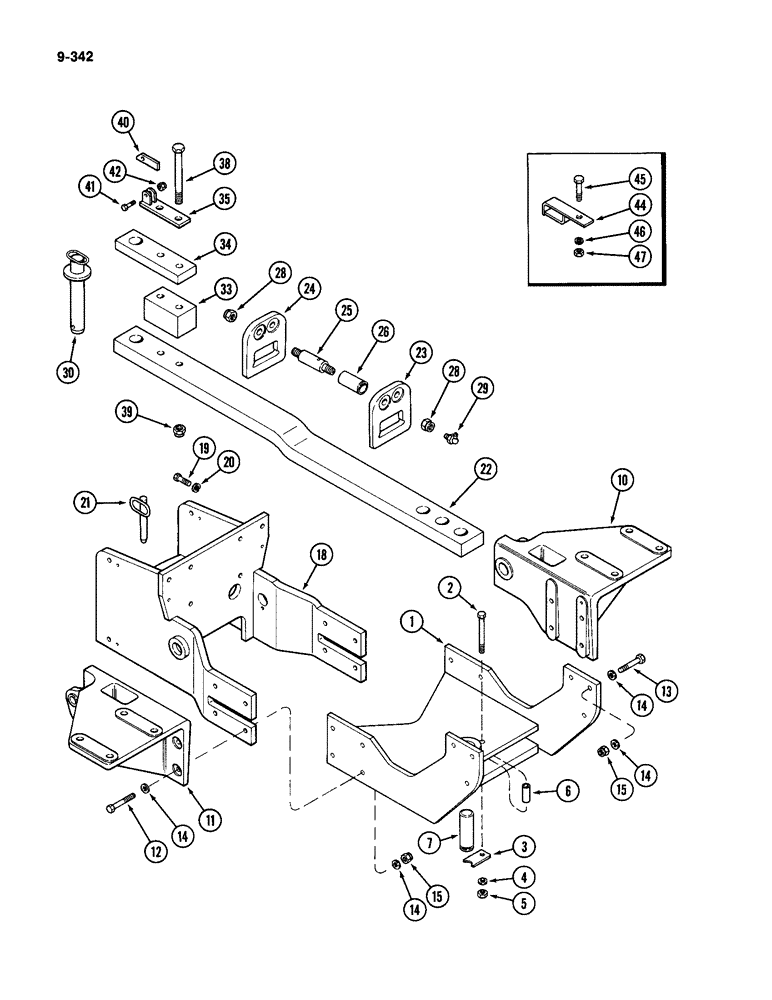

Запчасти Case IH 4994 (9-342) - DRAWBAR AND SUPPORTS, P.I.N. 8865846 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A165586

SUPPORT

- drawbar

1шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

3

A165591

STRAP

- lock

1шт.

4

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 mm)

2шт.

5

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NC

2шт.

6

A165594

SPACER

- drawbar

2шт.

7

A165593

PIVOT PIN

PIN - pivot, drawbar

1шт.

10

A176773

SUPPORT

BRACE - drawbar, left-hand

1шт.

11

A176774

SUPPORT

BRACE - drawbar, right-hand

1шт.

12

26-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 8

- hex, 3/4 NC x 4-1/4 inch

4шт.

13

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

24шт.

15

131-197

LOCK NUT,3/4"-10, GC

NUT - hex lock, 3/4 inch NC

1шт.

18

A177005

SUPPORT

- drawbar

1шт.

19

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

20

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

21

A169705

PIN

- stop, drawbar

2шт.

22

A167319

DRAWBAR

- towing

1шт.

23

A167323

BRACKET

- hanger, front

1шт.

24

A167324

HANGER

BRACKET - hanger, rear

1шт.

25

T38572

PIN

- roller

2шт.

26

A145831

BUSHING

ROLLER - drawbar

2шт.

28

131-477

LOCK NUT,1"-8

NUT - hex lock, 1 inch NC

4шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

30

A176603

HITCH PIN

PIN - hitch

1шт.

33

A167317

SPACER

- yoke

1шт.

34

A167318

YOKE

- drawbar

1шт.

35

A170000

RETAINER

- pin

1шт.

Ref #35 & #40 - Deleted

1шт.

38

26-16152

BOLT,Hex, 1" - 8 x 9-1/2", Gr 8

- hex, 1 inch x 9-1/2 inch

1шт.

39

131-477

LOCK NUT,1"-8

NUT - hex lock, 1 inch NC

1шт.

40

A169996

PLATE

FLIPPER - drawbar

1шт.

Ref #35 & #40 - Deleted

1шт.

41

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

42

131-70

NUT,1/2"-13, GB

NUT - hex lock,1/2 inch NC

1шт.

A169124

SUPPORT KIT - safety chain (Machinery Item), Includes: Ref. 44 - 47

1шт.

44

A166390

RETAINER

SUPPORT - chain

1шт.

45

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

46

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

47

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex, 3/4 inch NC

1шт.
