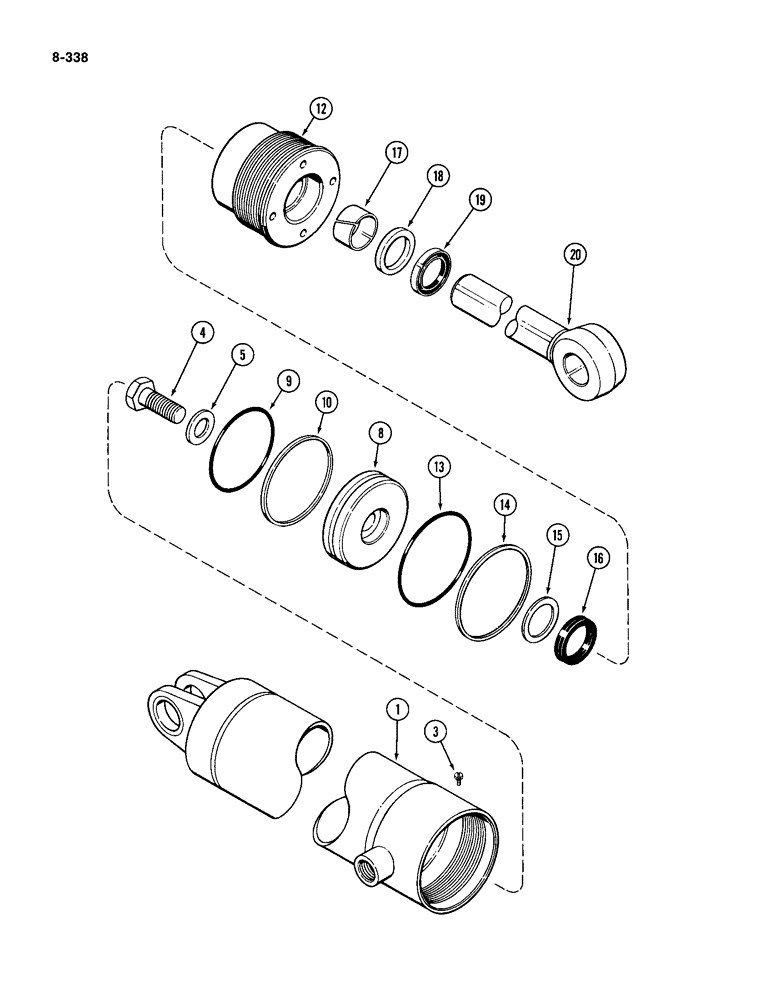

Запчасти Case IH 4994 (8-338) - HITCH CYLINDER ASSEMBLY (08) - HYDRAULICS

G107789

CYLINDER

ASSEMBLY - hitch, Includes: Ref. 1 - 20

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Reference No. G107790)

1шт.

3

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex slotted, 8-32 x 3/8 inch

1шт.

4

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

5

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

8

G104114

PISTON

- cylinder

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- piston

1шт.

Part of Repair Kit, P/N G105509

1шт.

10

G31928

RING

- seal, piston

1шт.

Part of Repair Kit, P/N G105509

1шт.

12

G104933

CYLINDER

GLAND ASSEMBLY - cylinder, Includes: Ref. 13 - 19

1шт.

13

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Repair Kit, P/N G105509

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Repair Kit, P/N G105509

1шт.

15

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer

1шт.

Part of Repair Kit, P/N G105509

1шт.

16

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- rod

1шт.

Part of Repair Kit, P/N G105509

1шт.

17

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Gland

1шт.

Part of Repair Kit, P/N G105509

1шт.

18

G34299

RING

- retaining

1шт.

19

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Part of Repair Kit, P/N G105509

1шт.

20

G107794

ROD

- piston

1шт.

Part of Repair Kit, P/N G105509

1шт.

G105509

KIT

REPAIR KIT - seal (Includes item 9, 10, 13 - 17, 19 and 20)

1шт.
