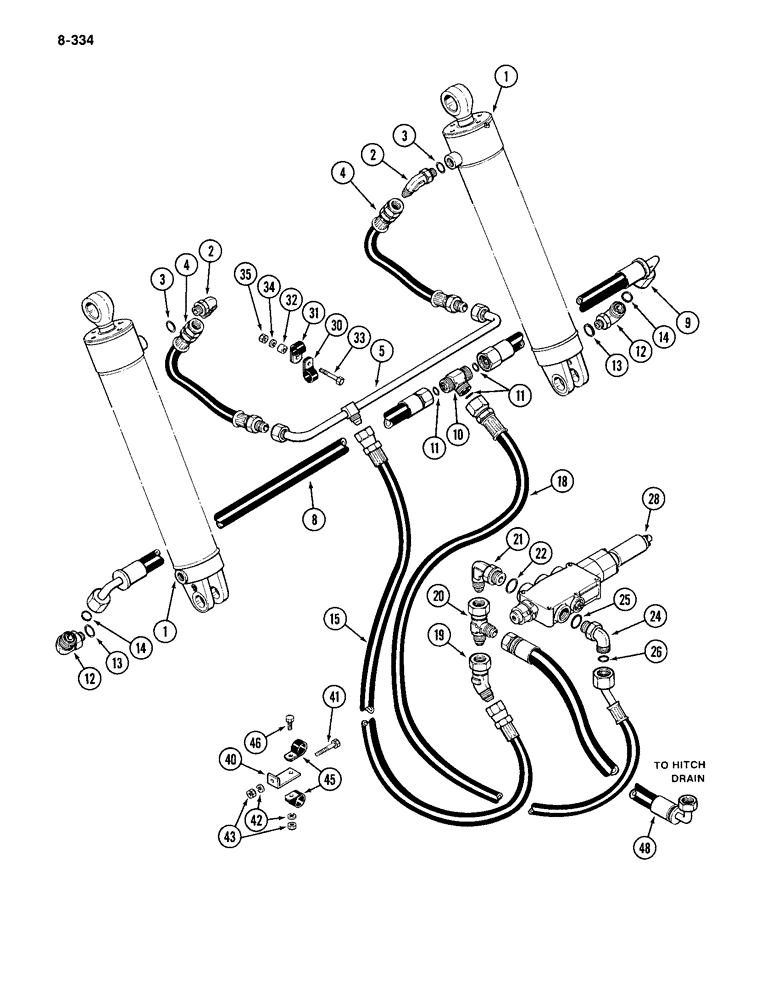

Запчасти Case IH 4994 (8-334) - HITCH CYLINDER CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, hitch (See Figure 8-338)

2шт.

2

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 3/4 tube 1-1/16-12 thread x 5/8 tube 7/8-14 inch thread), Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 4 x 2 mm)

1шт.

4

A177124

HOSE ASSY.

HOSE ASSEMBLY - return

2шт.

5

A180999

TUBE

ASSEMBLY - return

1шт.

8

A181009

HOSE ASSY.

HOSE ASSEMBLY - pressure, right-hand

1шт.

9

A181008

HOSE ASSY.

HOSE ASSEMBLY - pressure, left-hand (Replaces 181008)

1шт.

10

181010

TEE ASSEMBLY - union fitting, 1-3/16-12 NF straight thread, Includes: Ref. 11

1шт.

11

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- tee assembly

3шт.

12

A181012

FITTING

ELBOW ASSEMBLY - 90 degree 1-3/16-12 thread x 1/8 inch NF thread, Includes: Ref. 13 and 14

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

14

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- elbow assembly

1шт.

15

H224147

HYDRAULIC HOSE,19.05 mm ID x 1320.80 mm, SAE 100R1

Drain, Hitch 19.05 mm ID x 1320.80 mm, SAE 100R1

1шт.

18

A181007

HOSE ASSY.

HOSE ASSEMBLY - supply, hitch

1шт.

19

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

ASSEMBLY - 45 degree swivel, 3/4 tube 1-1/16-12 inch thread

1шт.

20

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Assy, 3/4 tube 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

21

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ASSEMBLY - 3/4 tube 1-1/16-12 thread x 1 tube 1-5/16-12 inch thread, Includes: Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64 inch (33 x 39 x 3 mm)

1шт.

24

A181011

FITTING

ELBOW ASSEMBLY - 90 degree, 1-3/16-12 thread x 1-1/16 inch thread, Includes: Ref. 25 and 26

1шт.

25

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64 inch (27 x 33 x 3 mm)

1шт.

26

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- elbow assembly

1шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - hitch (See Figure 8-336)

1шт.

30

R43738

CLAMP

- hose

2шт.

31

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

2шт.

32

A76093

BUSHING

SPACER - clamp, hose and tube

2шт.

33

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

40

A180775

BRACKET

- hose clamp

1шт.

41

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

45

R43738

CLAMP

- hose

1шт.

46

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

48

A75455

HOSE

ASSEMBLY - drain, hitch

1шт.
