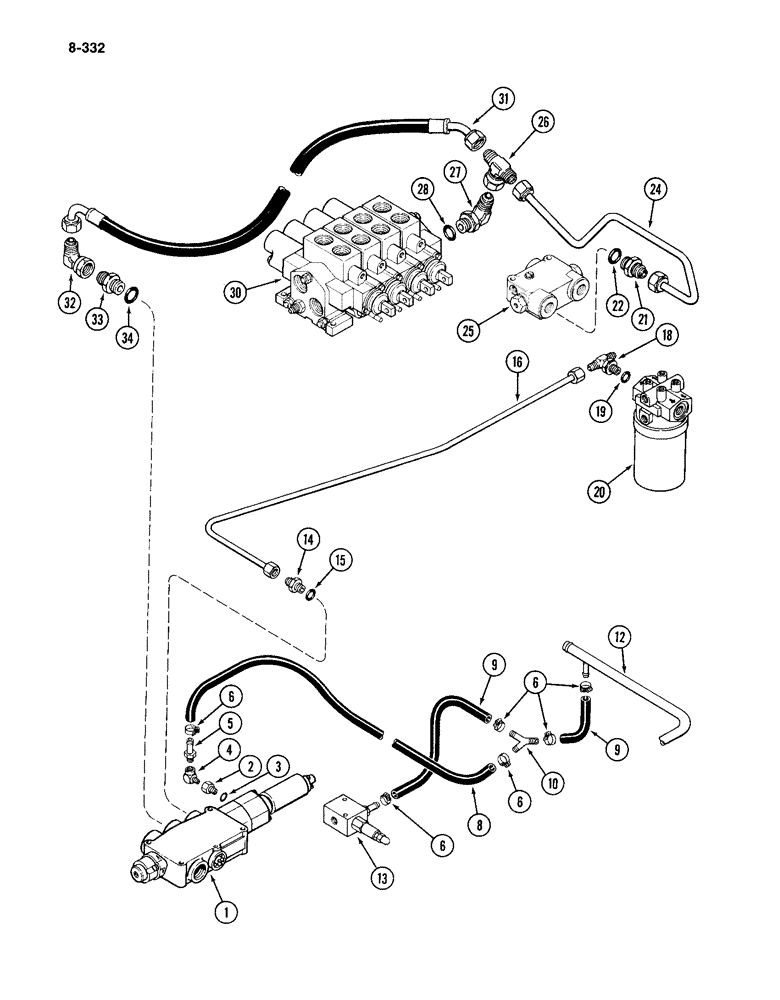

Запчасти Case IH 4994 (8-332) - HITCH VALVE CIRCUITRY (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch (See Figure 8-336)

1шт.

2

218-5098

FITTING

CONNECTOR ASSEMBLY - straight, 1/4 tube 7/16-20 thread x 1/8 inch PT, Includes: Ref. 3

1шт.

3

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

4

217-1028

ELBOW,1/8" - 27 Male x 1/4" - 18 Female

- 90 degree street, 1/8 x 1/4 inch PT

1шт.

5

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector - straight, barb end 3/8" Hose X 1/4" NPTF Beaded

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

6шт.

8

L60548

HOSE

- drain (Order S118400 and, Serial Range: cut-length)

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Drain 0.38" ID x 300.00"

1шт.

9

D80135

HOSE,9.50 mm ID x 457.20 mm, SAE 30R2

Valve to Drain Tube 9.50 mm ID x 457.20 mm, SAE 30R2

1шт.

10

L109362

CONNECTOR, ELEC

TUBE - connector, three way

1шт.

12

REF

INSTRUCTION

TUBE - rear steer drain ( See Figure 5-130)

1шт.

13

REF

INSTRUCTION

VALVE - pressure regulator (See Figure 8-270)

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 inch thread, Incl. Ref. 15

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 10 x 2 mm)

1шт.

16

A169885

TUBE ASSY.

TUBE ASSEMBLY - hitch valve to rear steer filter

1шт.

18

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - adjustable, 3/8 x 3/8 tube 9/16-18 thread x 1/2 tube 3/4-16 inch thread, Includes: Ref. 19

1шт.

20

REF

INSTRUCTION

FILTER ASSEMBLY - rear steer (See Figure 5-134)

1шт.

21

A181261

VALVE

ASSEMBLY - check, Includes: Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

24

A181016

TUBE

ASSEMBLY -, Serial Range: priority-remote

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - steering (See Figure 5-142)

1шт.

26

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

ASSEMBLY - swivel, 3/4 x 3/4 x 3/4 tube 1-1/16-12 inch thread

1шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, 3/4 x 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-312)

1шт.

31

L103831

LARGE HOSE

HOSE ASSEMBLY - hitch valve to remote valve

1шт.

32

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

ASSEMBLY - 90 DEGREE SWIVEL, 3/4 x 3/4 tube 1-1/16-12 inch thread

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 x 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

A181161

HITCH ATTACHMENT - three point, Category IV -IV N (Machinery Item)

1шт.

For tractors prior to P.I.N. 8865846, order (1) A181161, (1) A171773, and (1) A181097.

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.
