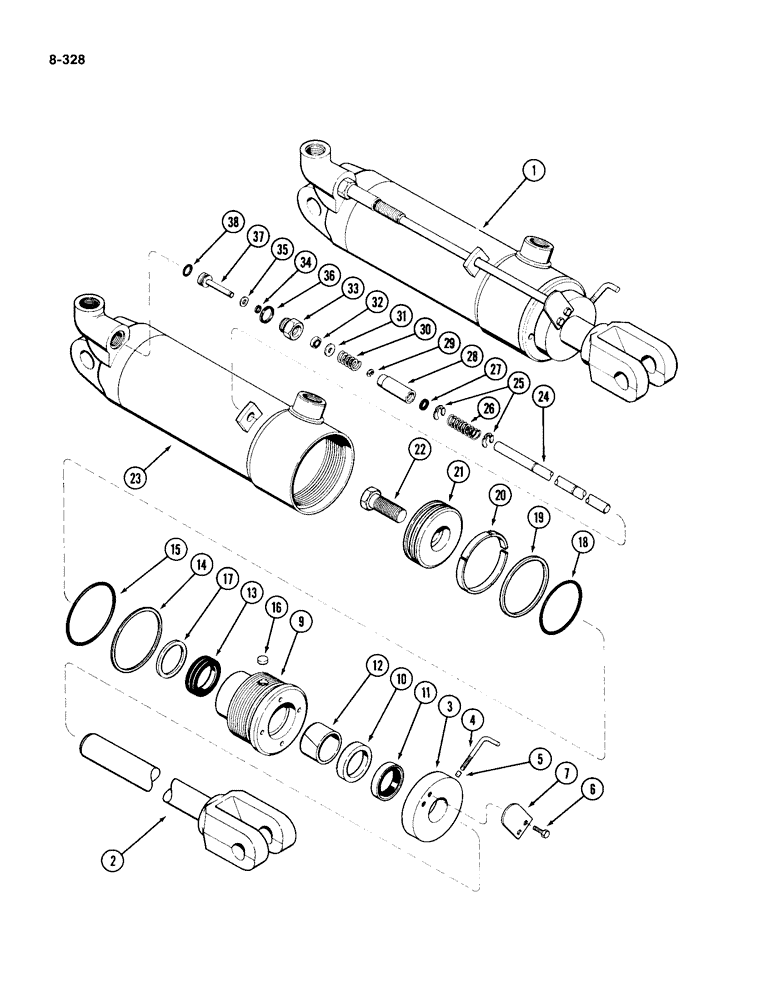

Запчасти Case IH 4994 (8-328) - REMOTE HYDRAULIC CYLINDER ASSEMBLY, 4 INCH (102 MM) BORE X 8 INCH (203 MM) STROKE (08) - HYDRAULICS

1

G33769

CYLINDER

ASSEMBLY - hydraulic remote, Includes: Ref. 2 - 37

1шт.

2

G33772

ROD

- piston

1шт.

3

G34980

COLLAR

COLLER - stop

1шт.

4

G34977

BOLT

- hook

1шт.

5

G34979

PLUG

- locking

1шт.

6

187-1515

SELF-TAP SCREW,1/4" - 20 x 3/4"

SCREW - self tapping, 1/4 NC x 1/2 inch

2шт.

7

G32075

PLATE

- stop

1шт.

G104933

CYLINDER

GLAND ASSEMBLY - backing, Includes: Ref. 9 - 17

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G104933)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - center bearing (Order G104933)

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

12

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

13

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- piston rod (Replaces D36969)

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

15

A25707

BRUSH ASSY.

O-RING - 4 inch (102 mm) ID

1шт.

16

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex slotted, 8-32 x 3/8 inch self tapping (Replaces G102569)

1шт.

17

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- gland (Replaces G104224)

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- 3-1/2 inch (89 mm) ID

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

19

G31928

RING

- seal, teflon

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

20

G100448

RING,101.6mm OD, Ext

- wear, nylon

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

21

G33774

PISTON

- cylinder

1шт.

22

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

23

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

24

G32428

ROD

- push

1шт.

25

G32429

RING

- retaining

2шт.

26

G31934

SPRING

- rod return, 2-5/16 inch (59 mm) free length

1шт.

27

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- 7/16 inch (11 mm) ID

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

28

G32427

SLEEVE

- retaining

1шт.

29

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

30

G31980

SPRING

- plunger return, 1 inch (25 mm) free length

1шт.

31

G31929

WASHER

- plunger spring

1шт.

32

G31932

WIPER SEAL

SEAL - wiper

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

33

G31933

GLAND

ASSEMBLY - valve, Includes: Ref. 34 and 35

1шт.

34

G31935

O-RING,0.174" ID x 0.377" OD

- 11/64 inch (4 mm) ID

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

35

G31948

WASHER

- plunger

1шт.

37

G31943

PLUNGER

- valve

1шт.

38

G109478

GASKET KIT

O-RING - 27/64 inch (18 mm) ID

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

G105500

KIT

- cylinder repair, Includes: ref. nos. 11, 12, 13, 14, 17, 18, 19, 20, 27, 32, 34, 36, 38

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.
