(8-312) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT

Запчасти Case IH 4994 (8-312) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT (08) - HYDRAULICS

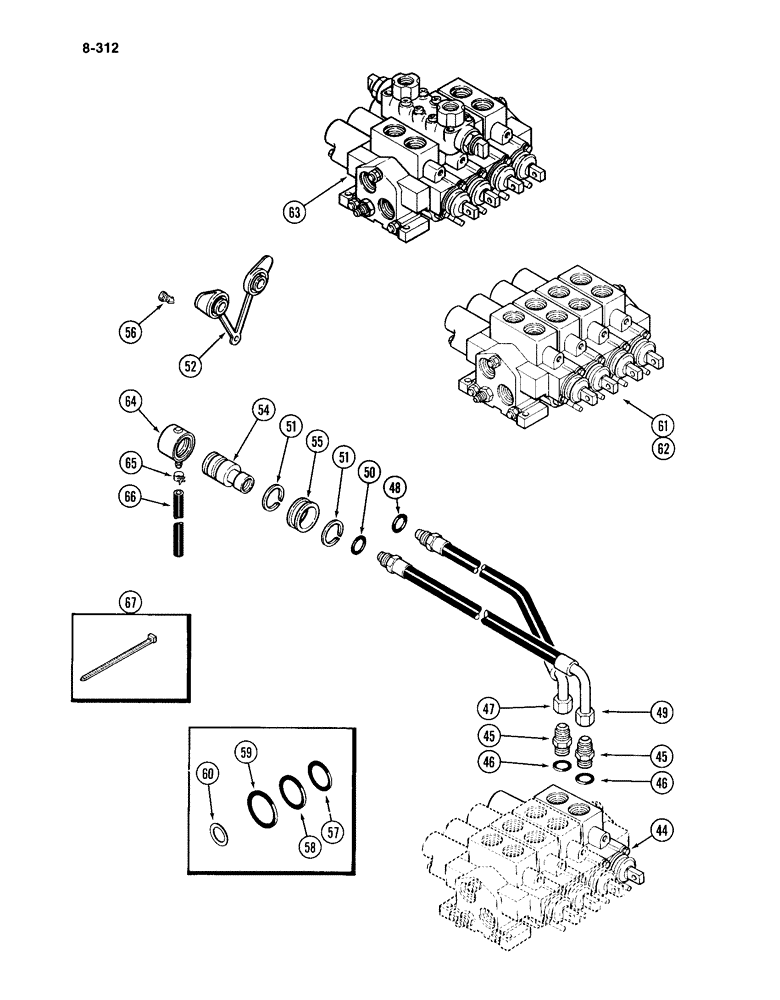

Схема запчастей Case IH 4994 - (8-312) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT (08) - HYDRAULICS
50
63
49
62
58
54
66
61
46
64
65
56
51
47
55
49
51
67
45
48
60
46
45
52
44
57
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169213

ATTACHMENT - remote hydraulic (without load check) (Machinery item) (Continued from Figure 8-310), Includes: Ref. 44 - 60 and 1 - 41 on Figure 8-310

1шт.

44

REF

INSTRUCTION

VALVE - remote, fourth circuit (Figure 8-310)

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 46

2шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

47

A164003

HOSE

ASSEMBLY - remote, short, Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

49

A164004

HOSE

ASSEMBLY - remote, long, Includes: Ref. 50

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

51

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

52

A145468

PLUG

- dust (Used with A147741 coupler, Figure 8-324)

1шт.

54

REF

INSTRUCTION

COUPLING ASSEMBLY - remote (See Figure 8-324)

2шт.

55

A149221

RETAINER

- coupling

2шт.

56

A162364

FASTENER

RETAINER - dust plug

1шт.

57

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- valve, 3/4 inch (19 mm) ID

1шт.

58

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- valve, 15/16 inch (24 mm) ID

2шт.

59

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- valve

1шт.

60

D77566

SHIM,.0030" Thk

Valve (0.076 mm) .0030" Thk

3шт.

61

A167474

VALVE

ASSEMBLY - four circuit, complete, Serial Range: -8865846

1шт.

62

A177680

VALVE

ASSEMBLY - four circuit, complete, Start Serial: 8865846

1шт.

63

A177653

LOCK VALVE

VALVE ASSEMBLY - four circuit, complete with load check on second circuit, Start Serial: 8865846

1шт.

64

A177479

CAP

ASSEMBLY - dust (Used with A177478 coupler, Figure 8-324)

2шт.

65

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

66

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

67

R38237

STRAP

- tie, nylon

2шт.
