(8-308) - REMOTE HYDRAULIC ATTACHMENT, THIRD SYSTEM (CONTINUED)

Запчасти Case IH 4994 (8-308) - REMOTE HYDRAULIC ATTACHMENT, THIRD SYSTEM (CONTINUED) (08) - HYDRAULICS

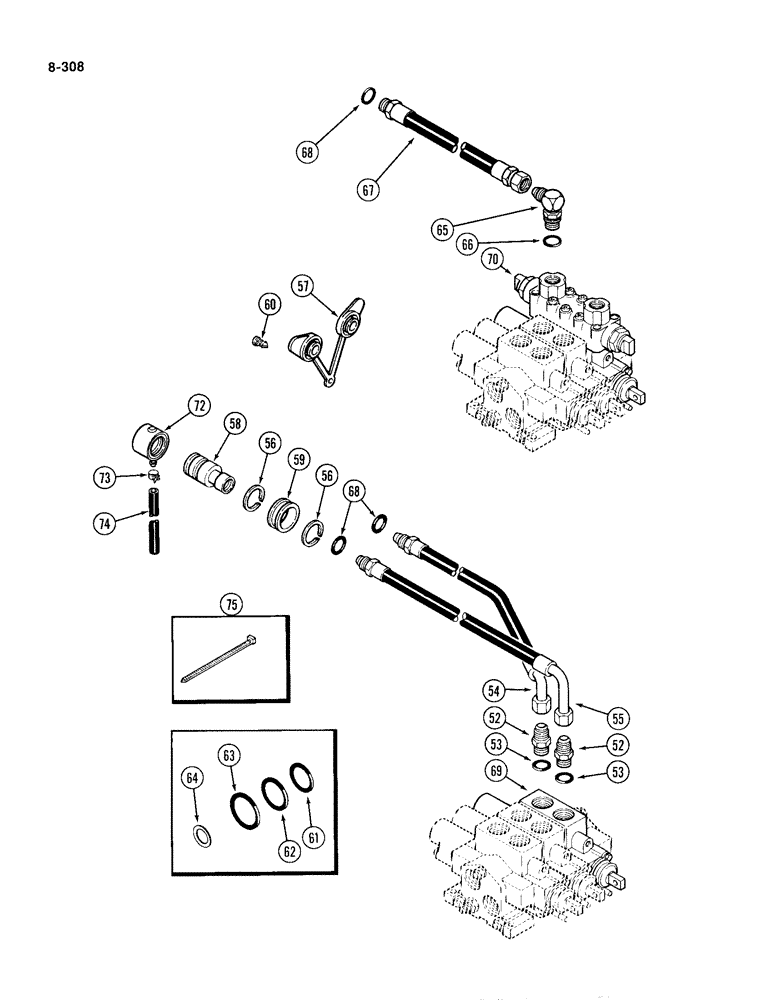

Схема запчастей Case IH 4994 - (8-308) - REMOTE HYDRAULIC ATTACHMENT, THIRD SYSTEM (CONTINUED) (08) - HYDRAULICS
53
54
57
58
68
62
53
56
60
59
74
61
66
67
72
52
73
70
64
75
69
52
63
56
68
65
55
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169210

ATTACHMENT - remote hydraulic, without load check (Machinery item) (Continued from Figure 8-306), Includes: Ref. 52 - 42 and 1 - 51 on Figure 8-306

1шт.

A169212

ATTACHMENT - remote hydraulic (with load check) (Machinery item), Includes: Ref. 52 - 72 and 1 - 51 on Figure 8-306

1шт.

52

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 53

2шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

54

A164003

HOSE

ASSEMBLY - remote, short (Used with Ref 1) (Includes o-ring, See Ref 68)

1шт.

55

A164004

HOSE

ASSEMBLY - remote, long (Used with Ref 1) (Included o-ring, See Ref 68)

1шт.

56

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

57

A145468

PLUG

- dust (Used with A147741 coupler, Figure 8-324)

1шт.

58

REF

INSTRUCTION

COUPLING ASSEMBLY - remote (See Figure 8-324)

2шт.

59

A149221

RETAINER

- coupling

2шт.

60

A162364

FASTENER

RETAINER - dust plug

1шт.

61

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- valve, 3/4 inch (19 mm) ID

1шт.

62

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- valve, 15/16 inch (24 mm) ID

2шт.

63

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- valve

1шт.

64

D77566

SHIM,.0030" Thk

Valve (0.076 mm) .0030" Thk

3шт.

65

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/8-14 inch thread (Used with Ref 2), Incl. Ref. 66

2шт.

66

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

67

D37184

HOSE

ASSEMBLY - remote (Used with Ref 2)

2шт.

68

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

69

REF

INSTRUCTION

VALVE ASSEMBLY - third circuit (without load check)

1шт.

70

REF

INSTRUCTION

VALVE ASSEMBLY - third circuit (with load checK)

1шт.

72

A177479

CAP

ASSEMBLY - dust (Used with A177478 coupler, Figure 8-324)

2шт.

73

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

74

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

75

R38327

STRAP - tie, nylon

2шт.
