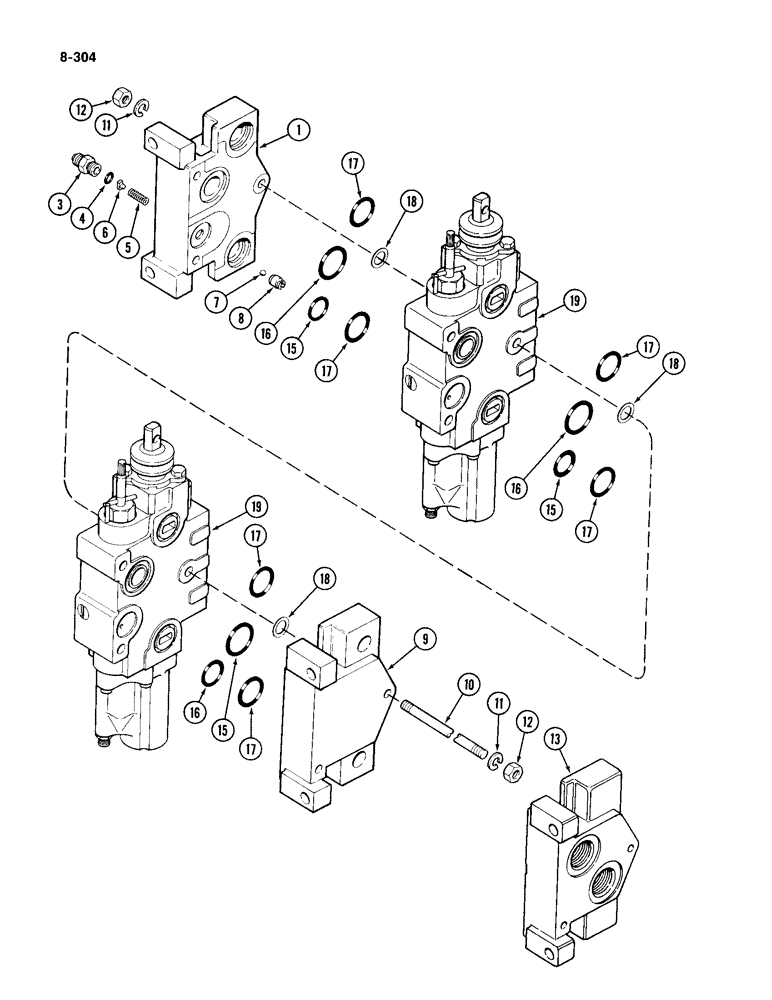

Запчасти Case IH 4994 (8-304) - REMOTE HYDRAULIC VALVE ASSEMBLY (08) - HYDRAULICS

1

A47169

COVER

ASSEMBLY - inlet, RH side (Used on 2, 3 and 4 circuit valves), Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet, pilot tube

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

5

A47176

SPRING

- valve, 11/16 inch (18 mm) free length, Includes: Ref. 6

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-257

BALL,1/4" Dia

(6 mm) 1/4" Dia

1шт.

8

A47202

SEAT

-valve

1шт.

9

A47113

COVER

- LH side, Includes: Ref. 10 - 18

1шт.

Used on 2, 3, and 4 circuit valves P.I.N. 8865846 and prior.

1шт.

10

A147506

STUD

- 3/8 inch NC

3шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

13

A52285

COVER ASSY

COVER - LH side

1шт.

Used on 4 circuit valves after P.I.N. 8865846.

1шт.

15

G34846

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- valve, 3/4 inch (19 mm ) ID

3шт.

16

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- valve, 1 inch (25 mm) ID

3шт.

17

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- valve, 15/16 inch (24 mm) ID

6шт.

18

D77566

SHIM,.0030" Thk

Valve (0.076 mm) .0030" Thk

9шт.

19

REF

INSTRUCTION

BODY ASSEMBLY - valve (See Figure 8-314 through 8-322)

1шт.
