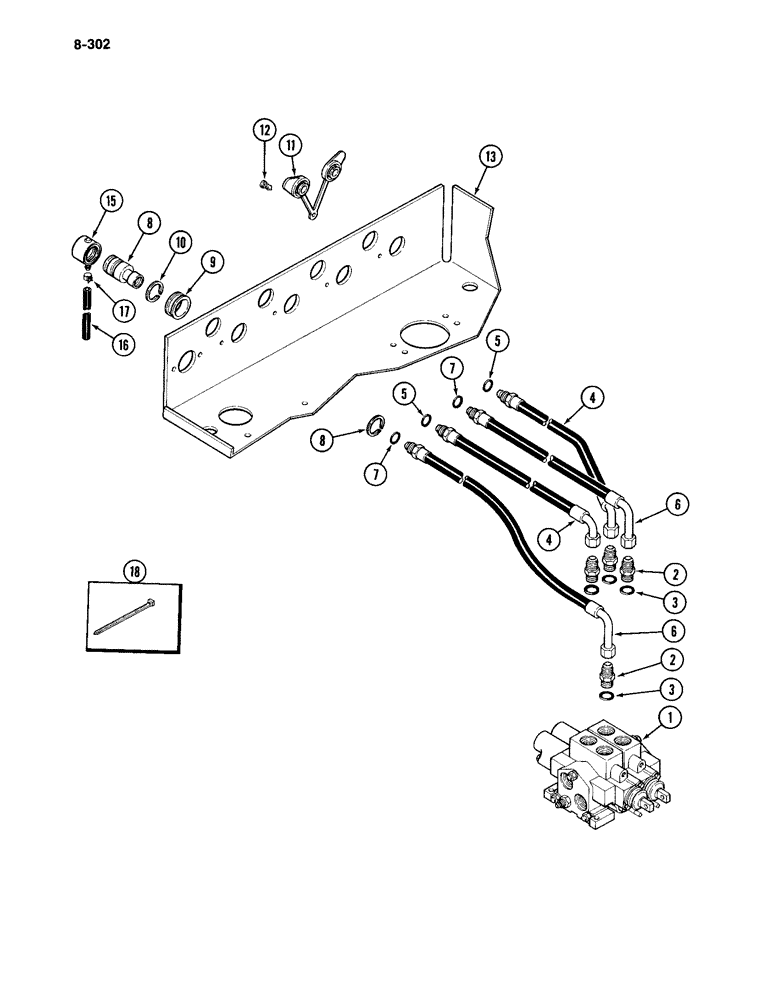

Запчасти Case IH 4994 (8-302) - REMOTE HYDRAULIC HOSES AND COUPLING, PRIOR TO P.I.N. 8865846, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A167473

LOCK VALVE

VALVE ASSEMBLY - remote, (See Figure 8-314)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

4

A164003

HOSE

ASSEMBLY - remote, short, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61-64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

6

A164004

HOSE

ASSEMBLY - remote, long, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - remote, hydraulic (See Figure 8-324)

4шт.

9

A149221

RETAINER

- coupling

4шт.

10

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling retaining

8шт.

11

A145468

PLUG

- dust (Used with A14471 coupler, Figure 8-324)

2шт.

12

A162364

FASTENER

- dust plug

2шт.

13

A163952

PLATE

- coupling mounting

1шт.

15

A177479

CAP

ASSEMBLY - dust (Used with A177478 coupler, Figure 8-326)

4шт.

16

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

4шт.

17

A180159

CLAMP,10.29mm - 12.32mm

- hose

4шт.

18

R38237

STRAP

- tie, nylon

2шт.
