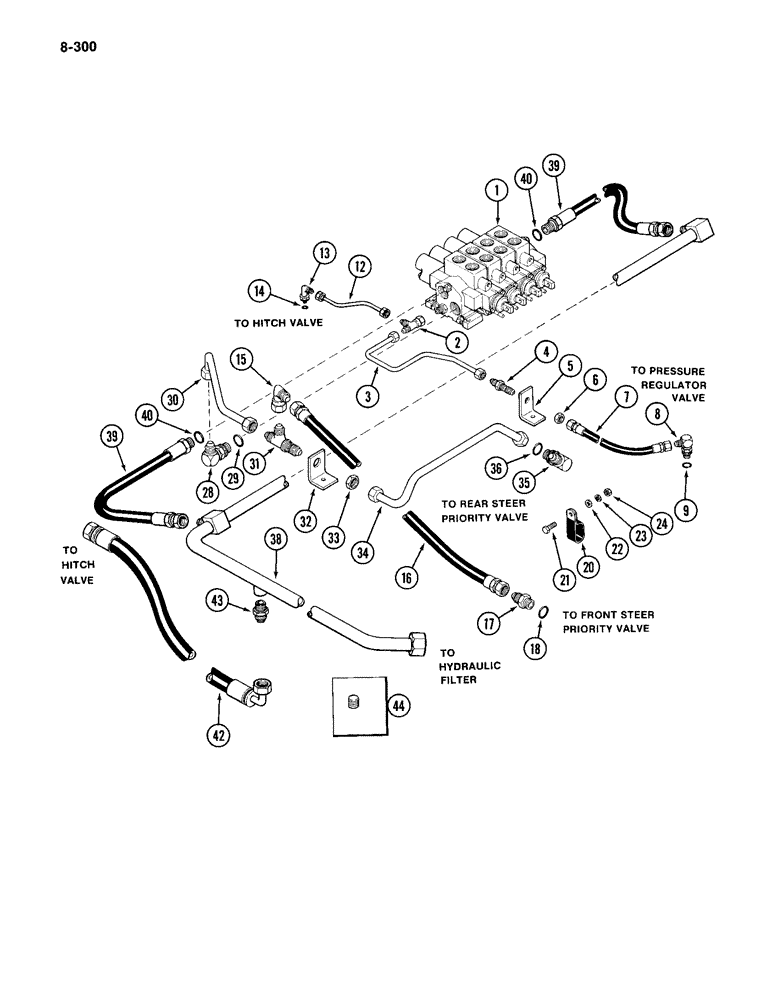

Запчасти Case IH 4994 (8-300) - REMOTE HYDRAULIC SYSTEM, P.I.N. 8865846 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-304)

1шт.

2

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

ASSEMBLY - swivel, 3/8 tube 9/16-18 inch thread

1шт.

A164684

TUBE

ASSEMBLY - remote sensing

1шт.

4

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

5

A163926

BRACKET

- bulkhead

1шт.

6

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, LOCK, Blkhd, 9/16"-18

1шт.

7

A167758

HOSE,9.65 mm ID x 1375.00 mm, SAE 100R2

- Sensing 9.65 mm ID x 1375.00 mm, SAE 100R2

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 inch thread, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

12

A169886

TUBE

ASSEMBLY - hitch sensing

1шт.

13

A180598

ELBOW

ASSEMBLY - 90 degree adjustable, Includes: Ref. 14

1шт.

14

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 12 x 2 mm)

1шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 3/4 tube 1-1/16-12 inch thread

1шт.

16

A169087

HOSE,19.05 mm ID x 1170.00 mm, SAE 100R9

ASSY - Remote to priority valve 19.05 mm ID x 1170.00 mm, SAE 100R9

1шт.

17

A181261

VALVE

CHECK VALVE ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (21 x 29 x 3 mm)

1шт.

20

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- hose and tube

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

28

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

30

A164682

TUBE

ASSEMBLY - pressure, remote

1шт.

31

218-1238

TEE,1 1/16"-12, 37 Degree, Blkhd

- bulkhead, 3/4 tube 1-1/16-12 inch thread

1шт.

32

A163927

BRACKET

- bulkhead

1шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

LOCK NUT - bulkhead, 1-1/16-12 inch thread

1шт.

34

A163911

TUBE ASSY.

TUBE ASSEMBLY - remote to rear steer priority valve

1шт.

35

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 36

1шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

38

A181572

TUBE

- drain, remote

1шт.

39

D73319

HOSE

ASSEMBLY - drain, remote, Includes: Ref. 40

2шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

42

A75455

HOSE

ASSEMBLY - return, hitch valve

1шт.

43

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, 3/4 tube 1-1/16-12 thread x 3/4 inch PT

1шт.

44

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - square socket head pipe, 3/4 inch PT (without hitch)

1шт.
