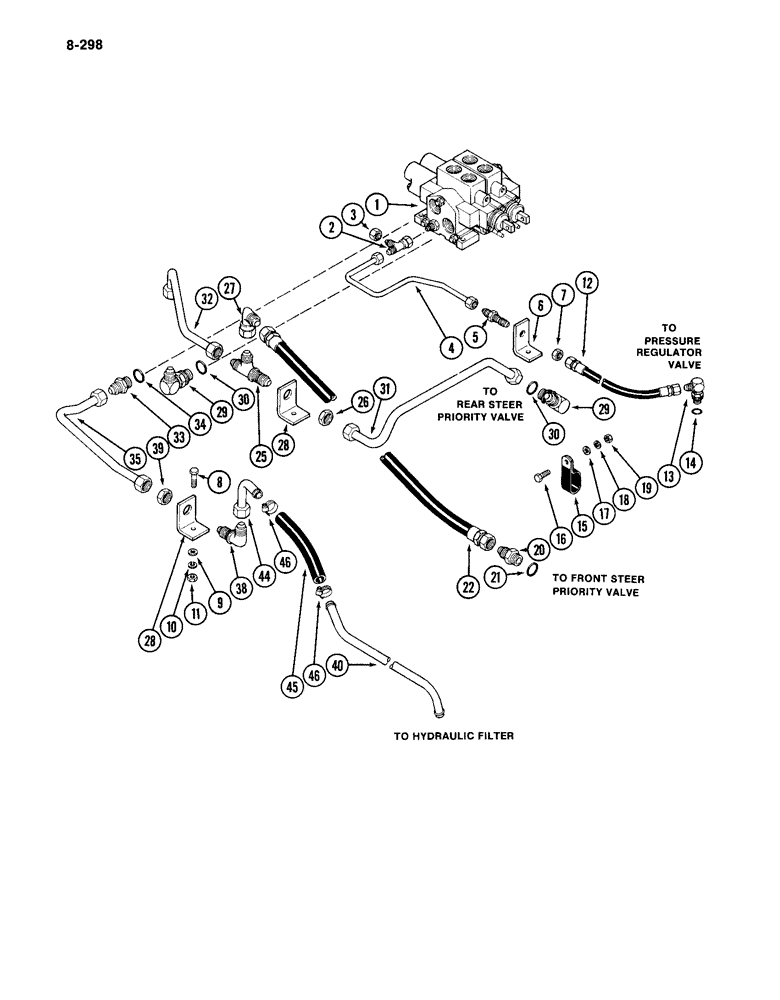

Запчасти Case IH 4994 (8-298) - REMOTE HYDRAULIC SYSTEM, PRIOR TO P.I.N. 8865846 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-304)

1шт.

2

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

ASSEMBLY - swivel, 3/8 tube 9/16-18 inch thread

1шт.

3

218-754

CAP,37 Degree, 9/16"-18

- nut, 3/8 tube 9/16-18 inch thread

1шт.

4

A164684

TUBE

ASSEMBLY - remote sensing

1шт.

5

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

6

A163926

BRACKET

- bulkhead

1шт.

7

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, LOCK, Blkhd, 9/16"-18

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

9

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1-16 inch (10 x 21 x 2 mm)

3шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

12

A167758

HOSE,9.65 mm ID x 1375.00 mm, SAE 100R2

- Sensing 9.65 mm ID x 1375.00 mm, SAE 100R2

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 inch thread, Includes: Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

15

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- hose and tube

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

1шт.

20

A181261

VALVE

CHECK VALVE ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

22

A169087

HOSE,19.05 mm ID x 1170.00 mm, SAE 100R9

ASSY - Remote to front priority 19.05 mm ID x 1170.00 mm, SAE 100R9

1шт.

25

218-1238

TEE,1 1/16"-12, 37 Degree, Blkhd

- bulkhead, 3/4 tube 1-1/16-12 inch thread

1шт.

26

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

LOCKNUT - bulkhead, 1-1/16-12 inch thread

1шт.

27

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 3/4 tube 1-1/16-12 inch thread

1шт.

28

A163927

BRACKET

- bulkhead

2шт.

29

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 30 and 31

2шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 X 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

31

A163911

TUBE ASSY.

TUBE ASSEMBLY - remote to rear steer priority

1шт.

32

A164682

TUBE

ASSEMBLY - remote pressure

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 34

1шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

35

A164680

TUBE ASSY.

TUBE ASSEMBLY - remote valve outlet

1шт.

38

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

3/4 tube 90º Blkhd, 1 1/16"-12, 37º x 1 1/16"-12, 37º

1шт.

39

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

LOCKNUT - bulkhead, 1-1/16-12 inch thread

1шт.

40

A167077

TUBE

- remote valve drain

1шт.

44

S236758

TUBE,0.75" OD x 3.06, 3.06" L

ASSEMBLY - remote drain

1шт.

45

L45481

- remote drain ( Order L54155 and, Serial Range: cut-length)

1шт.

L54155

HOSE,0.75" ID x 45.00", SAE 100R3

1шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.
