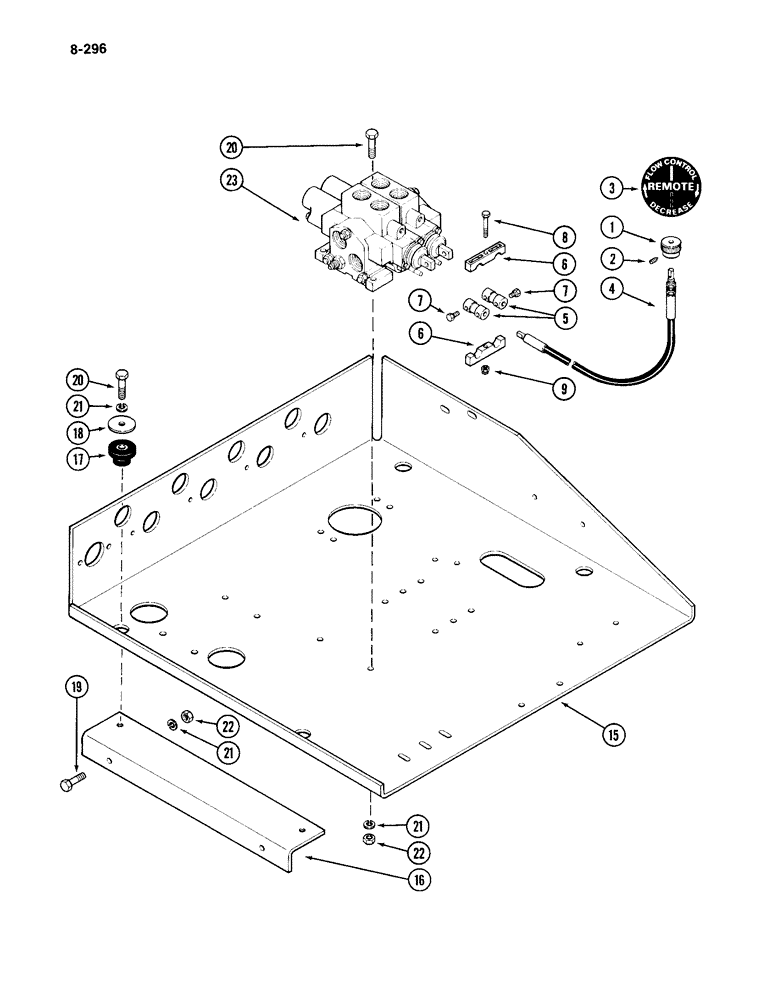

Запчасти Case IH 4994 (8-296) - REMOTE VALVE FLOW CONTROL, PRIOR TO P.I.N. 8895846, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A160814

KNOB

- flow control

2шт.

2

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - headless cone point, No. 10-32

2шт.

3

321-4129

DECAL

- flow control knob

2шт.

4

A165646

CABLE

- flow control

2шт.

5

A164240

SPOOL

- flow control

2шт.

6

A164241

BLOCK

BOLCK - flow control

2шт.

7

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self tapping, No. 10-24 x 3/8 inch

4шт.

8

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

15

A163952

PLATE

- valve mounting, remote

1шт.

16

A163919

SUPPORT

- mounting plate, remote valve

2шт.

17

L46821

SHOCK ABSORBER

BUSHING - plate mounting, remote valve

4шт.

18

195-2174

WASHER,13/32" x 2" x .109"

- flat, 13/32 x 2 x 1/8 inch (10 x 51 x 3 mm), remote valve mounting

4шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Remote valve mounting Hex, 3/8"-16 x 1 1/2", G5

4шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Remote valve mounting Hex, 3/8"-16 x 1 3/4", G5

8шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Remote valve mounting 3/8"

12шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Remote valve mounting 3/8"-16, G5

8шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Page 8-315), mounting

1шт.
