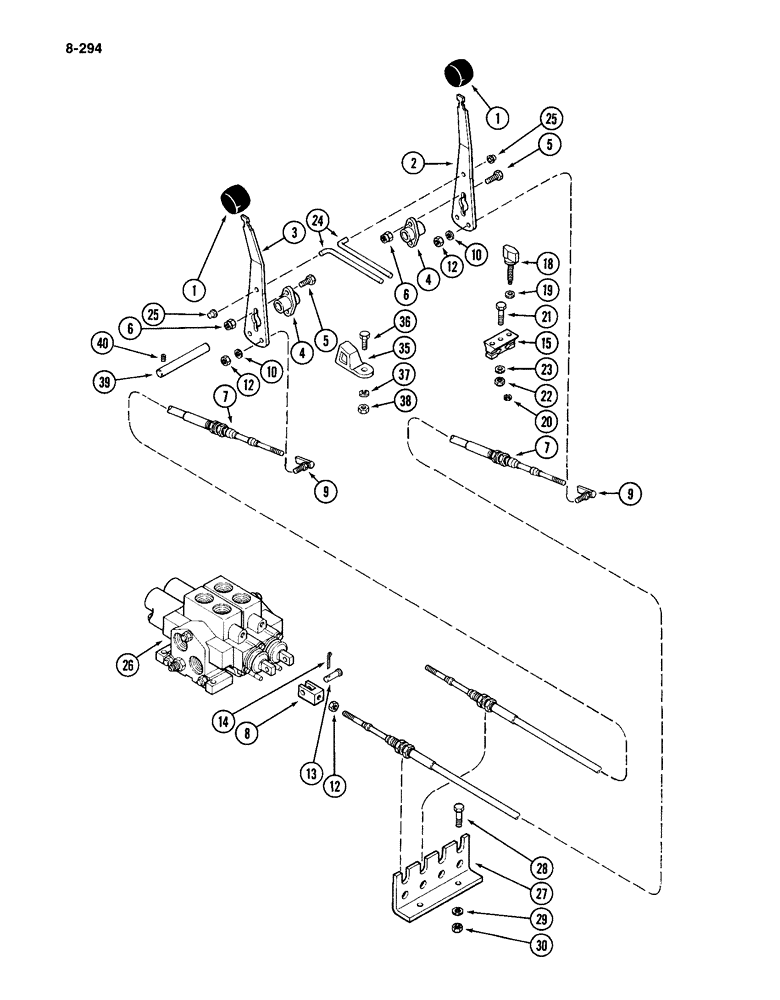

Запчасти Case IH 4994 (8-294) - REMOTE HYDRAULIC CONTROLS, PRIOR TO P.I.N. 8865846, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A177435

BALL KNOB

KNOB - lever, control (Black) (Replaces A137806)

2шт.

2

A166912

LEVER

- remote control, outer

1шт.

Ref #2A - A181264 Lever, Longer

1шт.

3

A166913

LEVER

- remote control, inner

1шт.

Ref #3A - A181265 Lever, Longer

1шт.

4

A162299

BEARING,15.95mm ID

- lever

2шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

7

A165326

CABLE

ASSEMBLY - remote control

2шт.

8

A60663

YOKE

- cable end

2шт.

9

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ASSEMBLY - ball

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

425-154

JAM NUT,Jam, 1/4"-28, G5

6шт.

13

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

14

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

2шт.

15

A166866

BLOCK

- friction

1шт.

18

A162958

BUTTON

KNOB - lever stop

2шт.

19

K651904

WASHER

- nylon

2шт.

20

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, , knob #X18, .122" Dia, E-Type

2шт.

21

113-74

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

- hex, 1/4 NC x 1-1/4 inch

1шт.

22

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

23

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/64 inch (7 x 16 x 2 mm)

1шт.

24

A166899

ROD

- lever lock

2шт.

25

S118721

NUT

PUSH NUT - lock rod

2шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-304)

1шт.

27

A166707

PLATE

- anchor, cable

1шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

35

A141542

LEVER

TAB - float lockout

2шт.

36

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

39

A162326

SHAFT

- lever pivot

1шт.

40

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - socket hex, 1/4 x 1/4-20 inch NC

1шт.
